English
Parts list
|

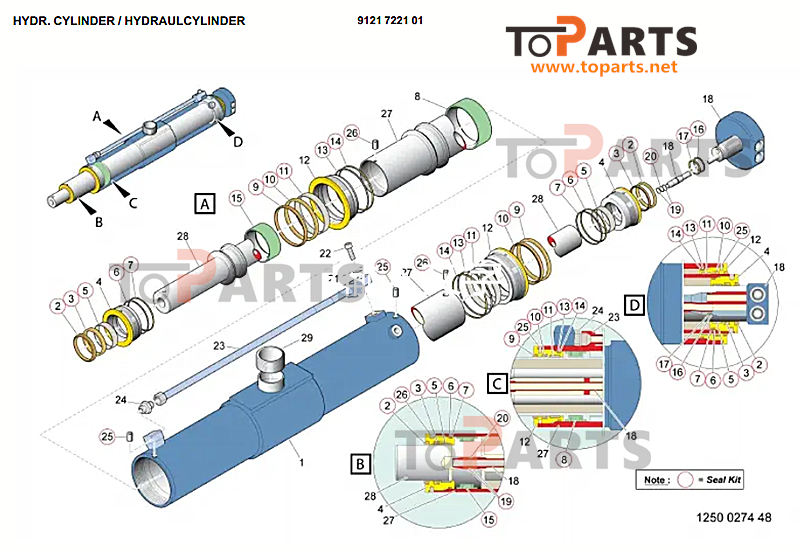

HYDR. CYLINDER / HYDRAULCYLINDER 9121 7221 01 |
|||
|
no |
Part no |
Qty |
Description |
|
|
9121652650 |
1 |
SEALING SET |
|
|
9122433250 |
2 |
COVER COMPL. |
|
|
9126277050 |
2 |
COVER COMPL. |
|
1 |
9121722301 |
1 |
MANTLE |
|
2 |
– |
2 |
COVER |
|
3 |
0663714800 |
2 |
O-RING |
|
4 |
0661154500 |
2 |
BACK-UP RING |
|
5 |
0665100016 |
2 |
SEAL |
|
6 |
0665909913 |
2 |
WIPER |
|
7 |
0665930067 |
2 |
GUIDE RING |
|
8 |
0665080014 |
1 |
PISTON SEAL |
|
9 |
– |
2 |
COVER |
|
10 |
0663614200 |
2 |
O-RING |
|
11 |
0661153900 |
2 |
BACK-UP RING |
|
12 |
0665100017 |
2 |
SEAL |
|
13 |
0665909912 |
2 |
WIPER |
|
14 |
0665930066 |
2 |
GUIDE RING |
|
15 |
9125673900 |
1 |
PISTON ROD SEAL |
|
16 |
0661152600 |
1 |
BACK-UP RING |
|
17 |
0663213100 |
1 |
O-RING |
|
18 |
9122365300 |
1 |
COVER |
|
19 |
0661151400 |
2 |
BACK-UP RING |
|
20 |
0663212200 |
1 |
O-RING |
|
21 |
0302127401 |
1 |
PLAIN WASHER |
|
22 |
0211136500 |
1 |
SCREW |
|
23 |
9126271400 |
1 |
PIPE |
|
24 |
3176651500 |
1 |
NIPPLE |
|
25 |
0196155209 |
2 |
SET SCREW |
|
26 |
– |
2 |
SET SCREW |
|
27 |
9126178300 |
1 |
INNER TUBE |
|
28 |
9126277101 |
1 |
PISTON ROD |
|
29 |
9127252300 |
1 |
PLAIN BEARING |

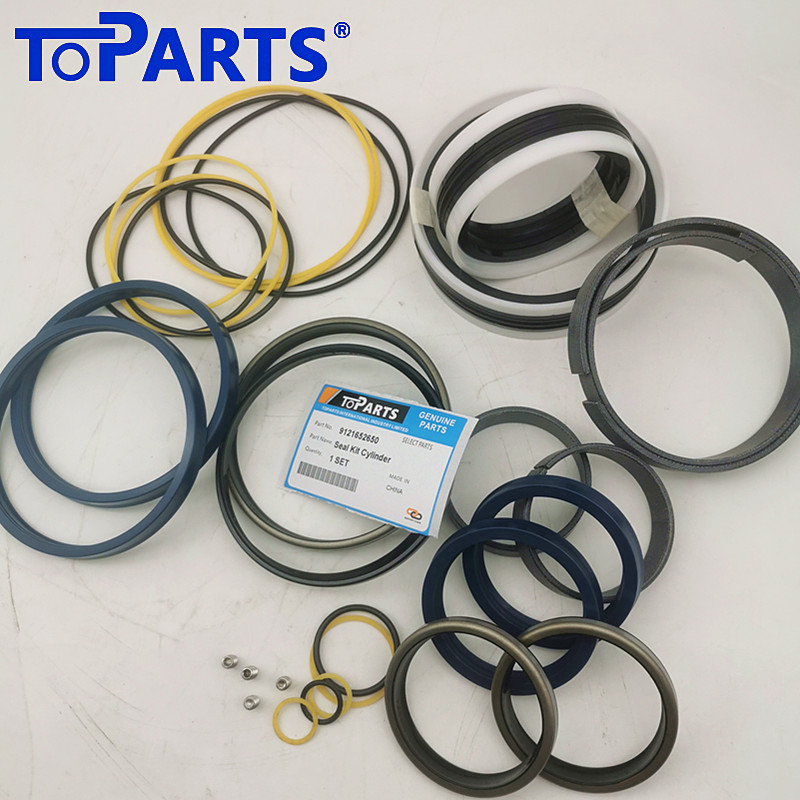

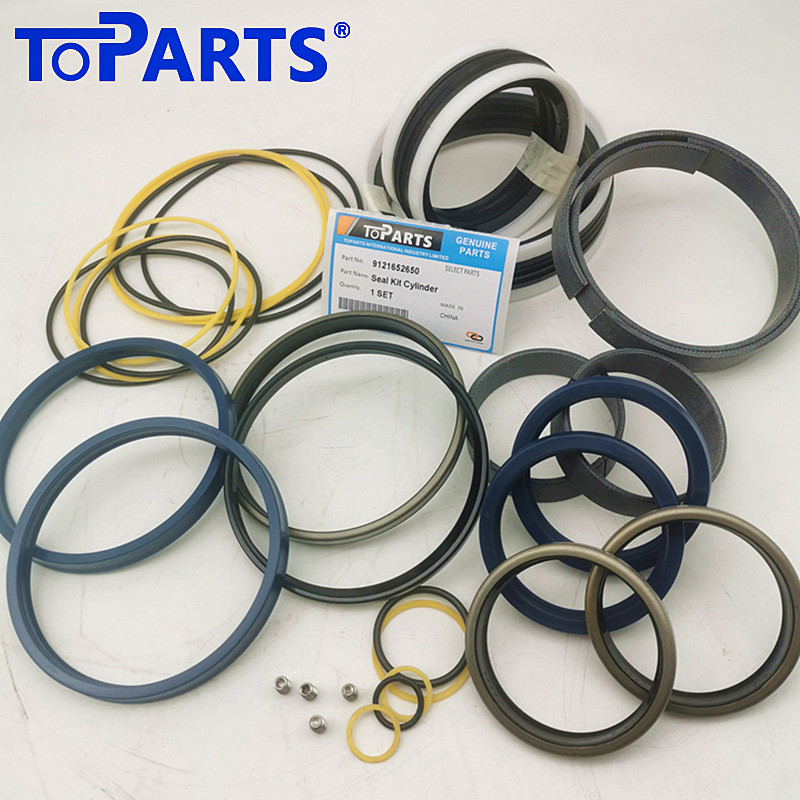

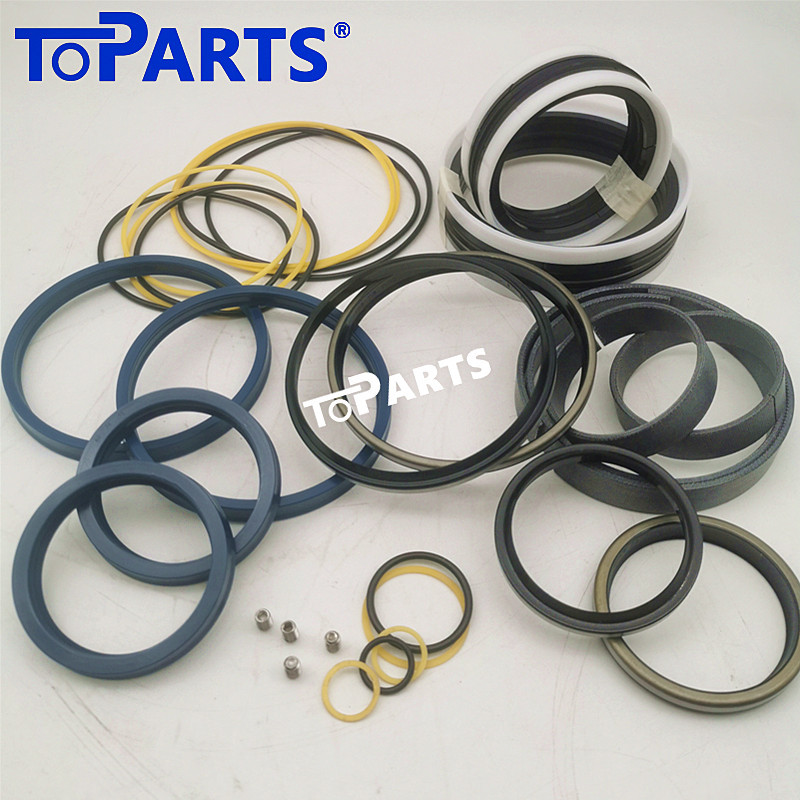

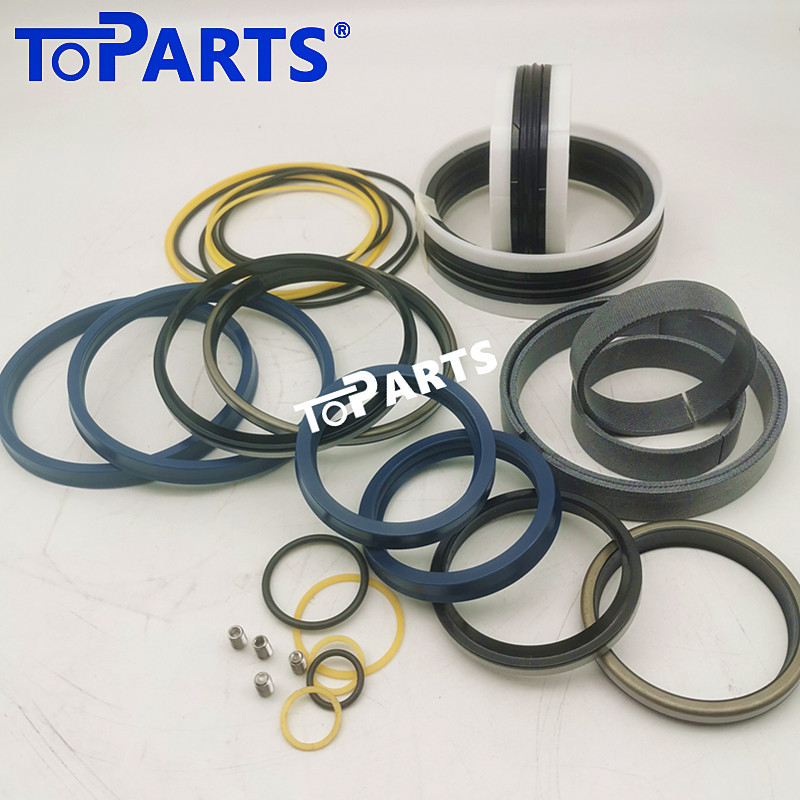

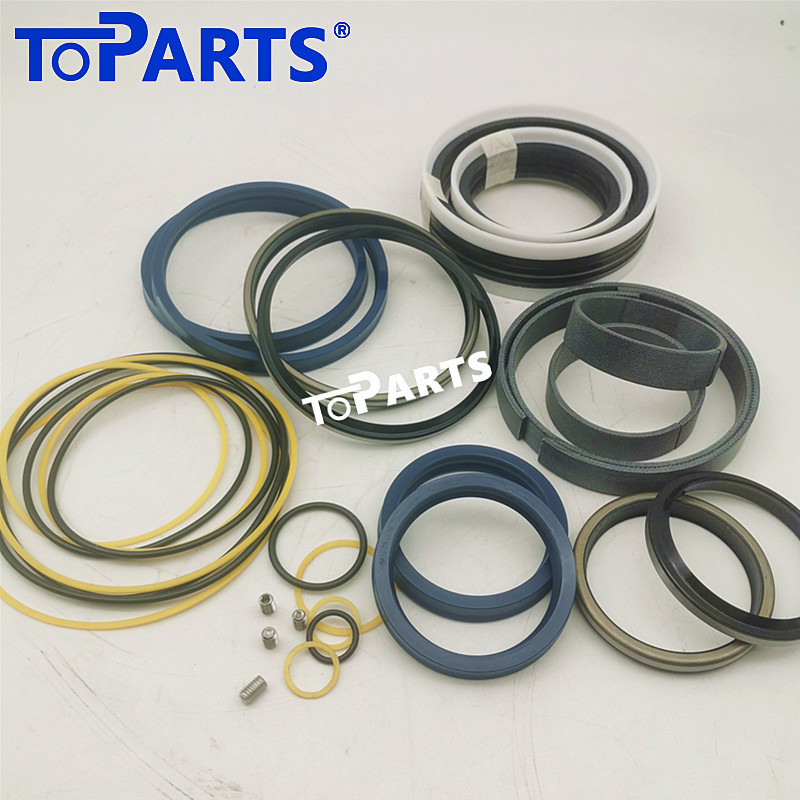

Toparts 9121652650 Hydraulic Rock Drill Seal Kit for Atlas Copco Long Hole Drill Rigs
Maximize the efficiency and lifespan of your long hole drilling operation with the Toparts 9121652650 Hydraulic Rock Drill Seal Kit. This crucial service and repair kit is specifically engineered for the drifter unit on your Atlas Copco Long Hole Drilling Rig, ensuring reliable performance and sustained power output.
Engineered for Precision Drilling
The drifter on an Atlas Copco Long Hole Rig operates under immense hydraulic pressure and percussion forces. The Toparts 9121652650 seal kit is a high-precision, direct aftermarket replacement for the original seals. It is meticulously crafted to meet or exceed OEM quality standards, guaranteeing a perfect fit and dependable sealing function under extreme mining and tunneling conditions.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the Atlas Copco OEM part number 9121652650, ensuring full compatibility with the drifter unit on your long hole drilling rig.
Superior Material Quality: Manufactured using specialized, high-grade materials (including high-performance polyurethanes, FKM, and PTFE), our seals are built to withstand the operational extremes of rock drilling, including high pressure surges, heat, and severe vibration.
Restores Percussion Power: Worn seals cause internal fluid bypass, leading to a significant drop in percussion pressure and drilling speed. Replacing them with the Toparts 9121652650 kit restores the drifter's maximum impact energy and reliable penetration rates over long distances.
Extends Drifter Life: By maintaining proper internal sealing, the kit effectively prevents contamination ingress and significantly reduces friction and wear on the intricate and expensive internal components of your drill rig's drifter.
Comprehensive Repair Solution: The kit contains all the necessary seals, O-rings, and specialized components required for a complete and effective hydraulic overhaul of the drifter unit.
Product Details:
Part Number (Seal Kit): 9121652650
Compatible Machine: Atlas Copco Long Hole Drilling Rigs (Drifter Unit)
Application: Hydraulic Rock Drill Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don't compromise your drilling schedule or equipment health. Invest in the trusted quality and reliability of the Toparts 9121652650 Hydraulic Rock Drill Seal Kit for your Atlas Copco Long Hole Drilling Rig.
