Parts list
|

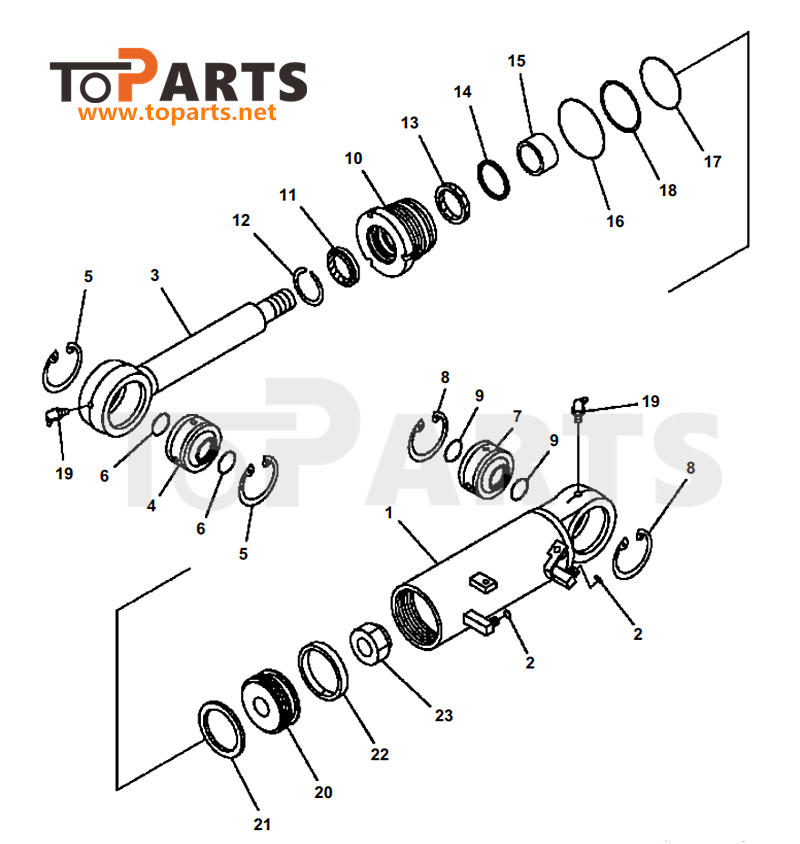

H0700-01A2 HYDRAULIC CYLINDER TILT |
|||
|
Item |
Part No. |
Description |
Qty |
|
|
707-00-0G840 |
CYLINDER ASSEMBLY |
1 |
|
1 |
721-11-10H10 |
CYLINDER |
1 |
|
2 |
02896-11008 |
O-RING |
2 |
|
3 |
721-58-55570 |
ROD, PISTON |
1 |
|
4 |
707-46-04070 |
BUSHING |
1 |
|
5 |
04065-09030 |
RING, SNAP |
2 |
|
6 |
07000-13040 |
O-RING |
2 |
|
7 |
707-46-04070 |
BUSHING |
1 |
|
8 |
04065-09030 |
RING, SNAP |
2 |
|
9 |
07000-13040 |
O-RING |
2 |
|
10 |
707-29-10990 |
HEAD, CYLINDER |
1 |
|
11 |
707-56-55540 |
SEAL, DUST |
1 |
|
12 |
07179-12069 |
RING, SNAP |
1 |
|
13 |
707-51-55030 |
PACKING, ROD |
1 |
|
14 |
707-51-55640 |
RING, BUFFER |
1 |
|
15 |
707-52-90300 |
BUSHING |
1 |
|
16 |
07000-12100 |
O-RING |
1 |
|
17 |
07000-12095 |
O-RING |
1 |
|
18 |
07146-02096 |
RING, BACK-UP |
1 |
|
19 |
07020-00900 |
FITTING, GREASE |
2 |
|
20 |
707-36-10340 |
PISTON |
1 |
|
21 |
707-44-10180 |
RING, PISTON |
1 |
|
22 |
07156-01012 |
RING, WEAR |
1 |
|
23 |
707-67-36010 |
NUT |
1 |
|
N/I |
707-99-34300 |
SERVICE KIT |
1 |
|
F1 - |
PART OF SERV |
ICE KIT 707-99-34300. |
|

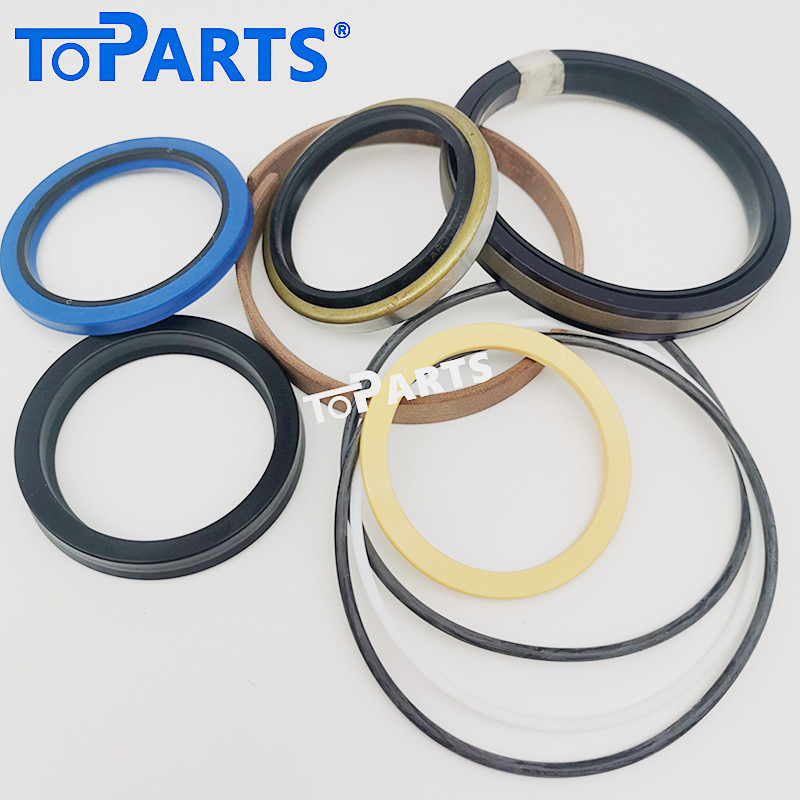

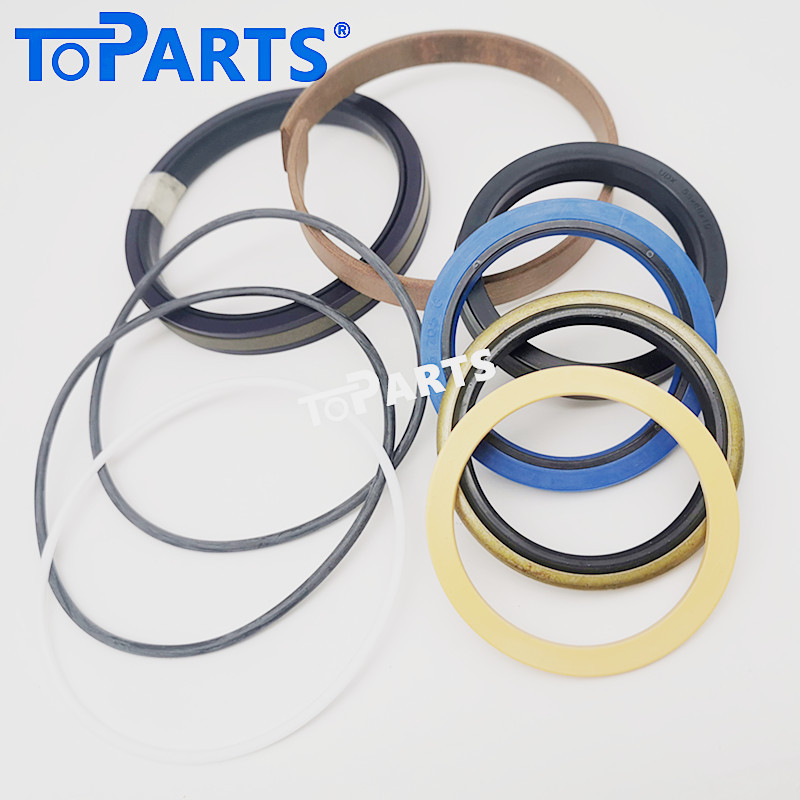

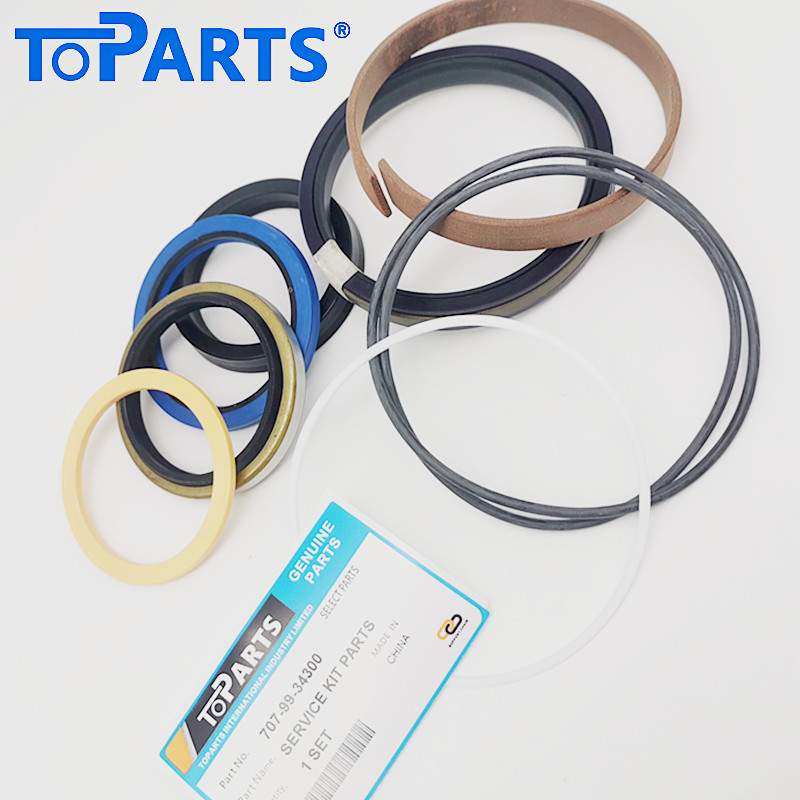

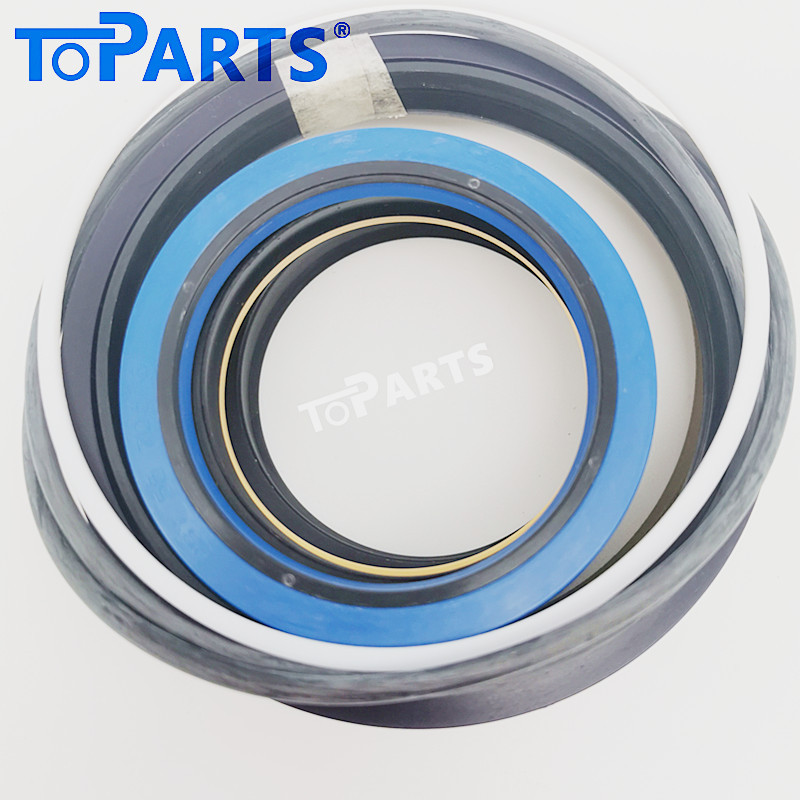

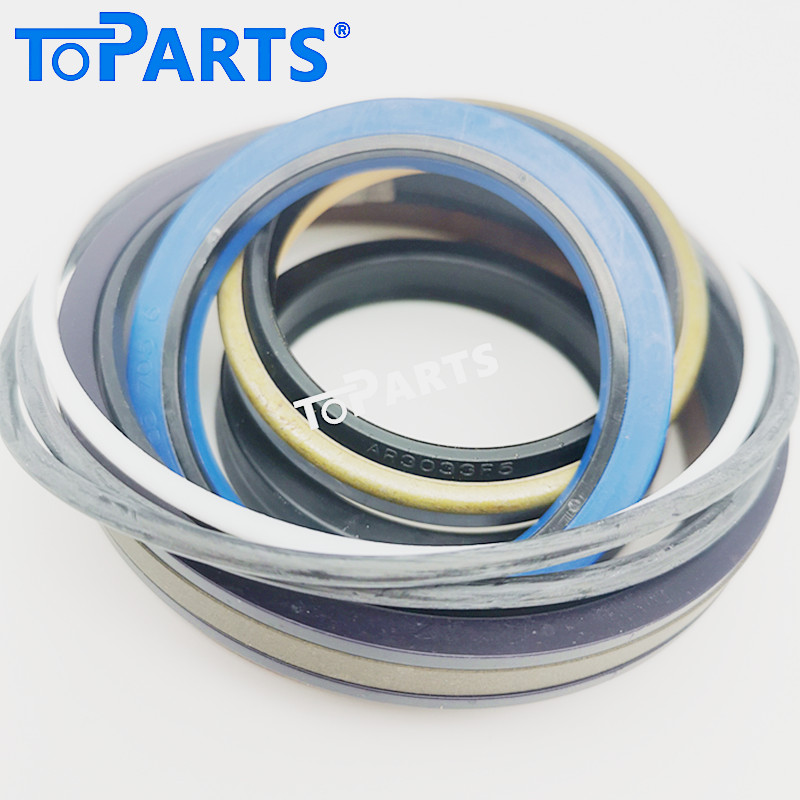

Toparts 707-99-34300 Hydraulic Cylinder Seal Kit for Komatsu D51PX-22
Restore the precision and tilting power of your earthmoving equipment with the Toparts 707-99-34300 Hydraulic Cylinder Seal Kit. Specifically engineered for the Tilt Cylinder of the Komatsu D51PX-22 Crawler Dozer, this premium repair kit is the professional solution for eliminating hydraulic leaks and ensuring your blade maintains the exact angles required for high-precision grading.
Engineered for Komatsu D51 Series Reliability
The Komatsu D51PX-22 is a versatile dozer known for its superior visibility and grading accuracy. Its tilt cylinder is subjected to constant pressure and abrasive debris during operation. Toparts has developed the 707-99-34300 kit using advanced material science to ensure your machine maintains its factory-spec responsiveness and breakout force, even in the most demanding site conditions.
Key Features and Benefits:
Direct OEM Compatibility: Precisely matched to Komatsu part number 707-99-34300, ensuring a perfect, leak-proof fit for the D51PX-22 tilt cylinder without the need for modifications.
Premium Material Composition: Manufactured from high-tensile Polyurethane (PU) for rod seals and specialized NBR for O-rings. These materials offer exceptional resistance to high-pressure hydraulic fluids, friction, and thermal expansion.
Eliminates Cylinder Drift: Our high-performance seals ensure maximum pressure retention, preventing the blade from "drifting" out of position during heavy pushing or precision leveling.
Advanced Contamination Shielding: Includes a heavy-duty wiper seal designed to scrape away mud, grit, and moisture, protecting the expensive internal cylinder rod and piston from scoring.
Complete Overhaul Set: This comprehensive kit includes all essential components—rod seals, piston seals, buffer seals, back-up rings, and O-rings—required for a professional-grade hydraulic service.
Built for Durability: Engineered to perform consistently in extreme temperatures, reducing unplanned downtime and extending the service life of your dozer.
Product Specifications:
Feature:Details
Part Number:707-99-34300
Compatible Model:Komatsu D51PX-22 Crawler Dozer
Cylinder Application:Blade Tilt Cylinder
Component Type:Full Hydraulic Sealing Service / Repair Kit
Material Grade:Industrial Strength PU, NBR, and PTFE
Application:Precision Grading, Earthmoving, and Construction
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a leading specialist in high-performance sealing solutions for global heavy industry. We understand that in construction, reliability is the key to profitability. Our 707-99-34300 seal kit provides the perfect balance of OEM-standard quality and exceptional aftermarket value, ensuring your Komatsu D51PX-22 remains a dependable asset in your fleet.
