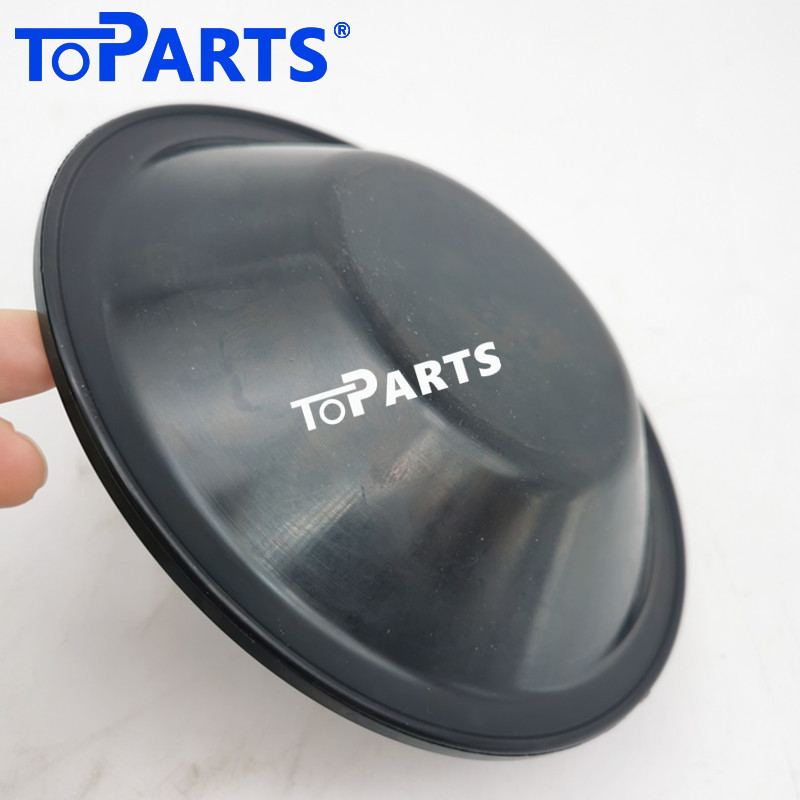

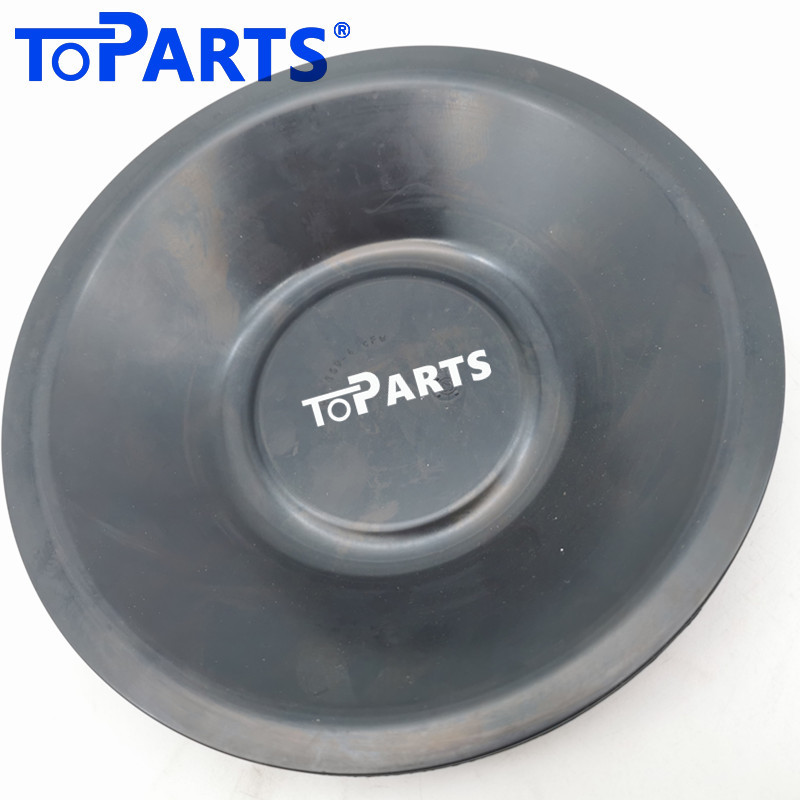

Name: 3315017300 Hydraulic breaker diaphragm membrane for Atlas Copco SB300 SBC610 TEX250
Brand: TOPARTS
SKU: TP0274
Price: 35.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Home > Diaphragm/Membrane > Atlas Copco

3315017300 Hydraulic breaker diaphragm membrane for Atlas Copco SB300 SBC610 TEX250

Description Review

Description

Model:Atlas Copco SB300 SBC610 TEX250 hydraulic breaker

Part Name:3315 0173 00 Hydraulic breaker diaphragm/membrane

Part Number:3315017300

Position:Accumulator Group

Material:HNBR, TPU

Certification:IOS 9001

Packaging Details:bag or box carton

Delivery Time:2-5days upon payments confirmed

Brand:TOPARTS, OEM or as Required

Payment Terms:TT/Paypal/WEST UNION

Supply Ability:200PCS

MOQ:1pcs

Parts list

NO.	Part number	quantity	Named name
1a	9125 9894 00	1	– Plug
1b	0259 2082 00	4	– Thread insert
2	3315 1805 10	1	Accumulator house
3	3315 2641 00	-	Front shield
4	3315 2397 00	-	Dust cover
5	3315 2485 00	1	Bushing
5a	3315 2691 00	-	Bushing, compl
5b	3315 3405 90	-	Oversize bushing,
6	0663 2100 56	-	– O-ring
7	3315 2311 01	1	Stop ring
8	3315 2032 00	1	Piston
9	0665 9099 43	1	Wiper
10	0665 0701 16	1	Piston rod seal
11	0663 2100 54	2	O-ring
12	3315 2033 00	1	Piston guide
13	0663 2109 44	5	O-ring
14	3315 2034 10	1	Liner
15	3315 2035 00	1	Main valve
16	3315 2036 10	1	Valve housing
17	3315 1237 00	8	Plunger
18	0665 0700 39	2	Piston rod seal
19	3315 2038 00	1	Seal housing
20	0665 9100 76	1	Wiper
21	0663 2111 38	1	O-ring
22	0291 1180 06	4	Lock Nut
23	3315 2190 00	4	Stud
24	3315 1556 30	1	End piece
25	3315 2448 81	1	Check valve compl.
26	3315 2808 00	1	Seal rubber
27	3315 1419 00	1	Lock buffer
28	3315 2030 00	2	Tool retainer
29	3315 2031 00	1	Lock pin
30	3315 1830 10	1	Plunger
31	0663 6134 01	1	O-ring
32	3315 1806 11	1	Diaphragm support seat
33	0663 6135 01	1	O-ring
34	3315 0173 00	1	Diaphragm
35	3315 0224 00	1	Diaphragm support
36	0335 3501 13	1	Snap ring
37	3315 2455 00	2	Pressure plug
38	3315 2560 06	-	Water nozzle
39	0686 3718 05	3	Hex. sock. plug
40	0108 1691 00	1	Spring pin
41	3315 2307 00	1	Parallel pin
42	0102 0621 00	2	Parallell pin
43	0663 2109 08	1	O-ring
44	0101 4197 00	1	Parallell pin
45	0661 1000 24	1	Seal washer
46	0663 2122 00	1	O-ring
47	3315 2541 00	1	Charge valve
48	0266 2114 00	14	Hexagon nut
49	3315 0195 10	28	Lock washer
50	0147 1485 03	14	Hex head screw
51	3176 6348 00	-	Nipple
52	3176 5429 00	-	Cap
53	— * *)	1	Restrictor
54	9125 6191 00	1	O-ring
55	3315 1503 00	8	Screw
58	0686 3718 01	8	Hex. sock. plug
59	0544 2153 00	1	Grease nipple
60	0570 7000 10	2	Cap
61	0570 7000 04	2	Nipple compl.
62	0664 0000 04	1	– Seal ring
63	0663 2102 17	1	– O-ring
64	0686 6442 07	2	Hex. sock. plug
65	3315 2569 00	1	Lock pin
66	0661 1020 00	1	Seal washer
67	3315 2039 00	1	Base plate, option
68	0108 1691 28	1	Conex spring pin (option)

Exploded view

Our customers

Toparts Factory takes pride in manufacturing high-quality hydraulic breaker parts, including the 3315017300 diaphragm designed specifically for Atlas Copco SB300, SBC610, and TEX250 hydraulic breakers. As a trusted provider, we understand the importance of reliable and durable components in maximizing the performance and efficiency of hydraulic breaker systems. In this article, we will highlight the key features and benefits of our premium 3315017300 diaphragm.

Uncompromising Quality:

Toparts Factory is committed to delivering products of the highest quality. Our 3315017300 diaphragm undergoes stringent quality control measures at every stage of production. We utilize top-grade materials and employ advanced manufacturing techniques to ensure exceptional durability and performance. With our diaphragm, you can expect long-lasting reliability and reduced downtime.

Perfect Fit and Compatibility:

The 3315017300 diaphragm is specifically designed to fit Atlas Copco SB300, SBC610, and TEX250 hydraulic breakers. Our engineers meticulously engineer each diaphragm to ensure a precise fit and seamless integration with these breaker models. This compatibility guarantees optimal functionality, allowing your hydraulic breaker to operate at its peak performance.

Enhanced Performance:

With Toparts Factory's 3315017300 diaphragm, you can experience enhanced performance and efficiency in your hydraulic breaker system. The diaphragm plays a crucial role in regulating the flow of hydraulic fluid, ensuring smooth and consistent operation. Our high-quality diaphragm enables efficient energy transfer, resulting in powerful impact force and improved breaking capabilities.

Durable and Resilient:

We understand that hydraulic breakers operate in demanding environments. That's why our 3315017300 diaphragm is engineered to withstand heavy-duty usage. It is built to resist wear, tear, and extreme conditions, ensuring prolonged service life and minimizing the need for frequent replacements. By choosing our diaphragm, you can significantly reduce maintenance costs and increase productivity.

Trustworthy Supplier:

Toparts Factory has a solid reputation as a trusted supplier of hydraulic breaker parts. We prioritize customer satisfaction and offer reliable support throughout the purchasing process. Our team of experts is available to assist you with any inquiries, ensuring that you find the right diaphragm and receive exceptional service.

Conclusion:

When it comes to high-quality hydraulic breaker parts, Toparts Factory is your trusted partner. Our 3315017300 diaphragm, specifically designed for Atlas Copco SB300, SBC610, and TEX250 hydraulic breakers, offers uncompromising quality, perfect fit, enhanced performance, and durability. Choose Toparts Factory for reliable and long-lasting hydraulic breaker components that will optimize the performance of your equipment. Contact us today to learn more about our products and how we can meet your hydraulic breaker needs.
Tag:Hydraulic breaker seal kit, Hydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
