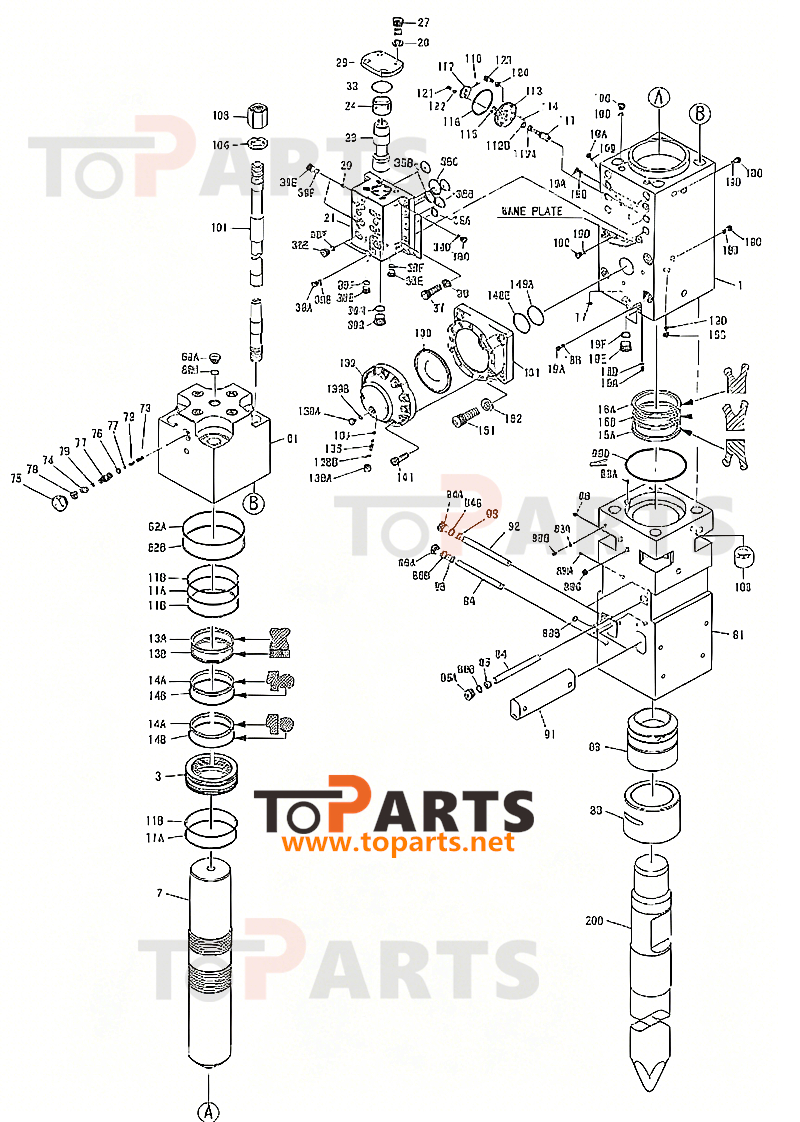

ltem No |
Part Name |
Q'ty |
Part No |
|
1 |
Cylinder |
1 |
15371010 |
|
2 |
Piston |
1 |
15371020 |
|
3 |
Cylinder Sleeve |
1 |
15371030 |
|
|
Seal Kit(#1) |
1set |
153710SK |
|
11A |
O-Ring |
2 |
E1022165 |
|
11B |
Back-Up Ring |
3 |
E2122165 |
|
13A |
Packing |
1 |
9E4QD133 |
|
13B |
Back-Up Ring |
1 |
9E2F2133 |
|
14A |
Ring-Packing |
2 |
9E4H5133 |
|
14B |
O-Ring |
2 |
E1161357 |
|
15A |
U-packing |
2 |
10130141H |
|
15B |
U-packing |
1 |
9E3B2141 |
|
17 |
O-Ring |
1 |
E1012012 |
|
19A |
Flange Plug 1/8 |
5 |
K10503 |
|
19B |
O-Rrig |
5 |
E1012008 |
|
19C |
Flange Plug 3/8 |
7 |
K10509 |
|
19D |
O-Rrig |
7 |
E1012014 |
|
19E |
Flange Plug 1 |
2 |
K10525 |
|
19F |
O-Rrig |
2 |
E1012029 |
|
|
Valve Box Ass'y(#2) |
1set |
153530001Q |
|
|
Valve Box O-Ring Kit(#3) |
1set |
153530SK1 |
|
21 |
Valve Box |
1 |
153530101 |
|
23 |
Valve |
1 |
21424160 |
|
24 |
Valve Box Sleeve |
1 |
21424151 |
|
25 |
Valve Cap |
1 |
21424161 |
|
27 |
Valve Cap Bolt |
4 |
A030A4549 |
|
28 |
Valve Cap Bolt Washer |
4 |
C810A020 |
|
29 |
Plug |
1 |
100109070 |
|
33 |
Valve Cap O-Ring |
1 |
E1022065 |
|
35A |
Valve Box O-Ring |
1 |
E1022025 |
|
35B |
Valve Box O-Ring |
4 |
E1012039 |
|
35C |
Valve Box O-Ring |
1 |
E1022055 |
|
37 |
Valve Cap Bolt |
8 |
A030A4569 |
|
38 |
Valve Cap Bolt Washer |
8 |
C810A020 |
|
39A |
Flange Plug 1/4 |
1 |
K10506 |
|
39B |
O-Rrig |
1 |
E1012011 |
|
39C |
Flange Plug 3/8 |
2 |
K10509 |
|
39D |
O-Rrig |
2 |
E1012014 |
|
39E |
Flange Plug 1/2 |
7 |
K10512 |
|
39F |
O-Rrig |
7 |
E1012018 |
|
39G |
Flange Plug 1 |
1 |
K10525 |
|
39H |
O-Rrig |
1 |
E1012029 |
|
61 |
Back Cap |
1 |
15352010 |
|
62A |
Back Cap O-Ring |
1 |
E1022200 |
|
62B |
Back Cap Back-Up Ring |
1 |
E2123200 |
|
69A |
Flang Plug |
1 |
K10519 |
|
69B |
O-Ring |
1 |
E10120224 |
|
|
Gas Valve Body Ass'y(#4) |
1set |
21350350X |
|
71 |
Gas Valve Body |
1 |
21350350 |
|
72 |
Gas Valve |
1 |
21350351 |
|
73 |
Spring |
1 |
21321352 |
|
74 |
Gas Cap |
1 |
21320353 |
|
75 |
Cover Cap |
1 |
21320354 |
|
76 |
Gas Valve Body O-Ring |
1 |
E1012016 |
|
77 |
Gas Valve O-Ring |
1 |
E1161008 |
|
78 |
Cover Cap Washer |
1 |
21320355 |
|
79 |
Gas Cap Packing |
1 |
21350356 |
|
|
Front Cap Ass'y(#5) |
1set |
15374000 |
|
81 |
Front Cap |
1 |
15374010 |
|
82 |
Shank Bushing |
1 |
15354110 |
|
83 |
Front Cap Bushing |
1 |
15404210 |
|
84 |
Shaft 20×200 |
3 |
101120200 |
|
85 |
Shaft Retainer 20 |
3 |
15204122 |
|
86A |
Flange Plug GPF3/4 |
3 |
K10519 |
|
86B |
O-Ring |
3 |
E10120224 |
|
88 |
Grease Nipple |
1 |
21310450 |
|
89A |
Plug GM1/8 |
3 |
K10103A |
|
89B |
Plug GM1/4 |
2 |
K10106A |
|
89C |
Plug GM3/8 |
1 |
K10109A |
|
89D |
O-Ring |
1 |
E1162265 |
|
91 |
Chisel Set Pin |
2 |
15404310 |
|
92 |
Shaft 20X200 |
2 |
101120200 |
|
93 |
Shaft Retainer 20 |
2 |
15204122 |
|
94A |
Plug |
2 |
15204123 |
|
94B |
O-Ring |
2 |
E10120224 |
|
|
Side Rod Ass'y(#7) |
4set |
15322500 |
|
101 |
Side Rod |
4 |
15322510 |
|
102 |
Side Rod Front Nut |
4 |
21422031 |
|
103 |
Back Nut |
4 |
15322530 |
|
104 |
Back Nut Washer |
4 |
15322531 |
|
|
Adjuster Case Ass'y(#8) |
1set |
16611200A |
|
|
Adjuster Case O-Ring(#9) |
1set |
166112SK |
|
111 |
Adjuster |
1 |
16611211 |
|
112A |
Adjuster O-Ring |
1 |
E1012016 |
|
112B |
Back-Up Ring |
1 |
E2112016 |
|
113 |
Adjuster Case |
1 |
16611212 |
|
114 |
Screw |
1 |
D0410264B |
|
115 |
Adjuster Case O-Ring |
1 |
E1012011 |
|
116 |
Adjuster Case O-Ring |
1 |
E1137085 |
|
117 |
Adjuster Cover |
1 |
16611213 |
|
118 |
Screw |
1 |
D0510189 |
|
121 |
Adjuster Case Set Bolt |
1 |
A030A1819 |
|
122 |
Bolt Washer |
1 |
C810A008 |
Product Description

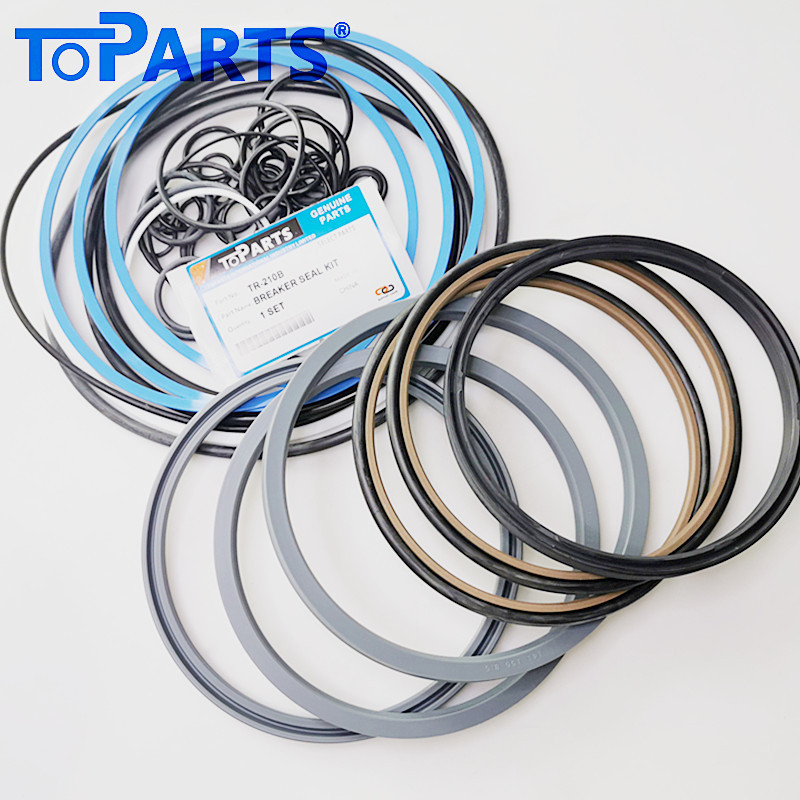

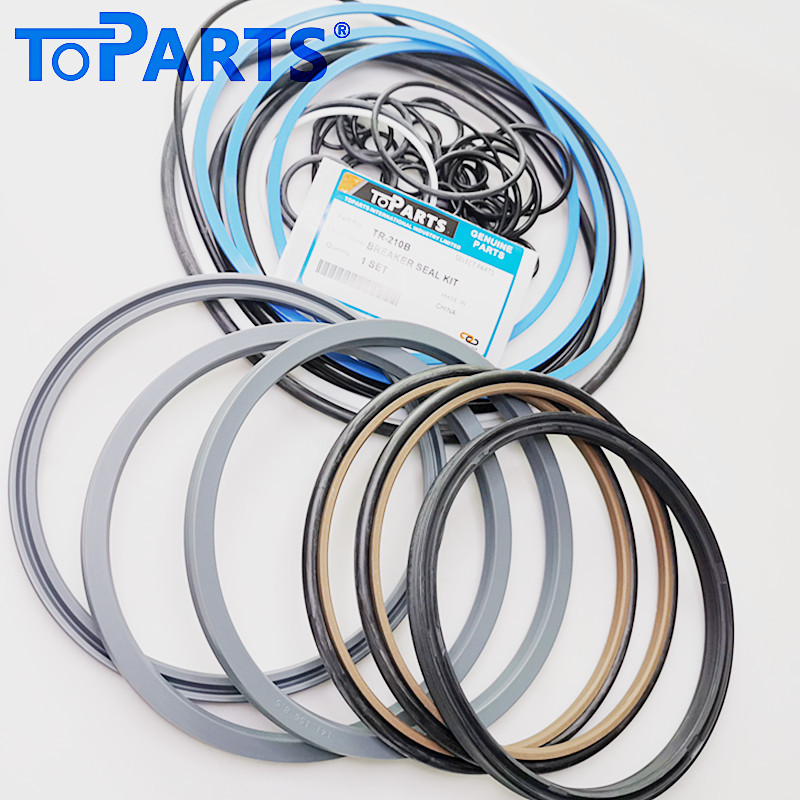

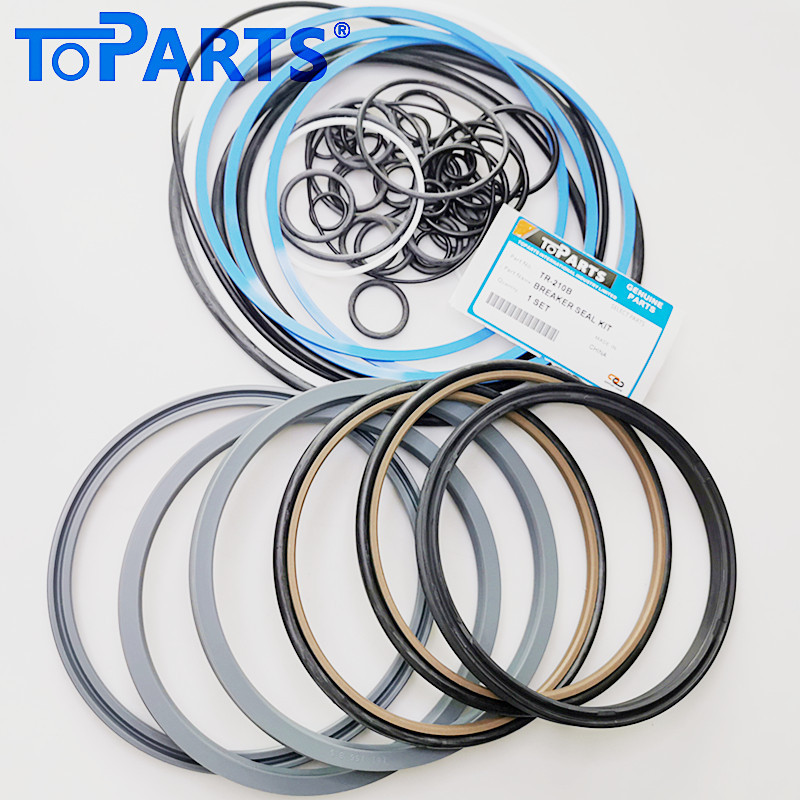

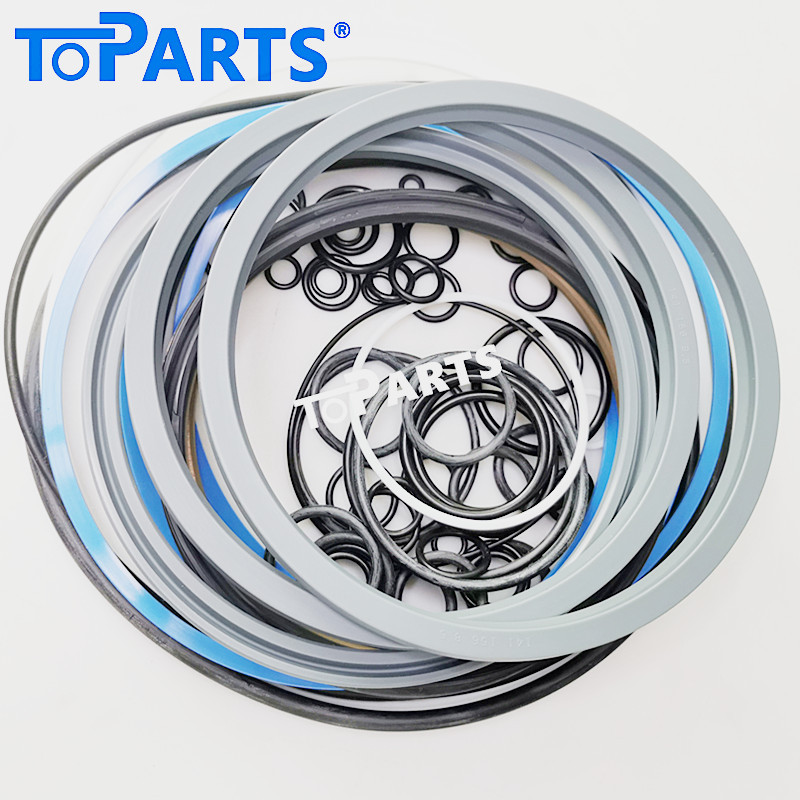

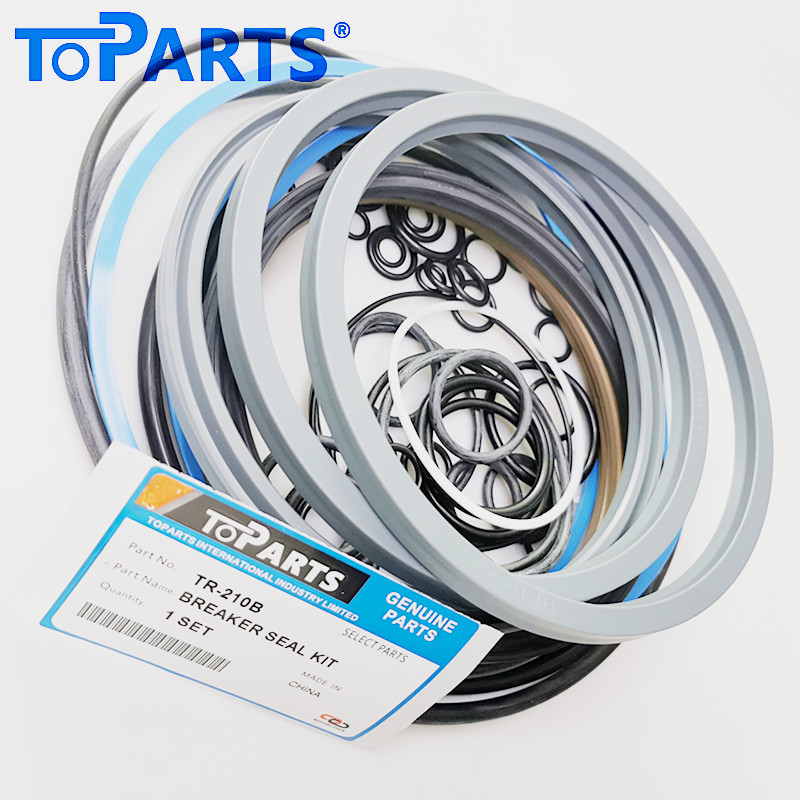

High-Performance 153710SK Seal Kit for TEISAKU TR210 & Komatsu KB155 Hydraulic Breakers
Restore the maximum impact energy of your heavy-duty breakers with the 153710SK professional service repair kit. This kit is precision-engineered to fit both the TEISAKU TR210 and Komatsu KB155 hydraulic hammers, which are widely used on 15-22 ton excavators for demanding demolition and quarrying projects.
At Toparts, we manufacture our 153710SK kits using industrial-grade materials designed to withstand the intense heat and high-frequency vibration characteristic of TR and KB series hammers. Our seals ensure a leak-free operation, protecting your equipment from costly downtime and internal damage.
Product Highlights:
Dual Brand Compatibility: Fully compatible with TEISAKU TR210 and Komatsu KB155 models (P/N: 153710SK).
Extreme-Grade Materials: Features high-tensile Polyurethane (PU) and premium NBR for superior resistance to hydraulic oil, friction, and extreme temperatures.
Peak Power Restoration: Prevents internal bypass and external leaks, ensuring the piston maintains maximum striking force against hard rock and concrete.
Enhanced Fatigue Resistance: Engineered to maintain its shape and sealing integrity during long hours of continuous operation in high-vibration environments.
Complete Overhaul Solution: Includes all essential rod seals, buffer seals, dust wipers, and O-rings required for a professional-level repair.
Technical Specifications:
Brand Compatibility: TEISAKU / Komatsu
Hammer Models: TR210, KB155
Part Number (P/N): 153710SK
Component Type: Hydraulic Breaker / Rock Hammer Service Kit
Material: Premium PU, NBR, PTFE + Bronze
Excavator Class: 15.0 - 22.0 Ton
Condition: 100% Brand New Industrial-Grade Aftermarket
