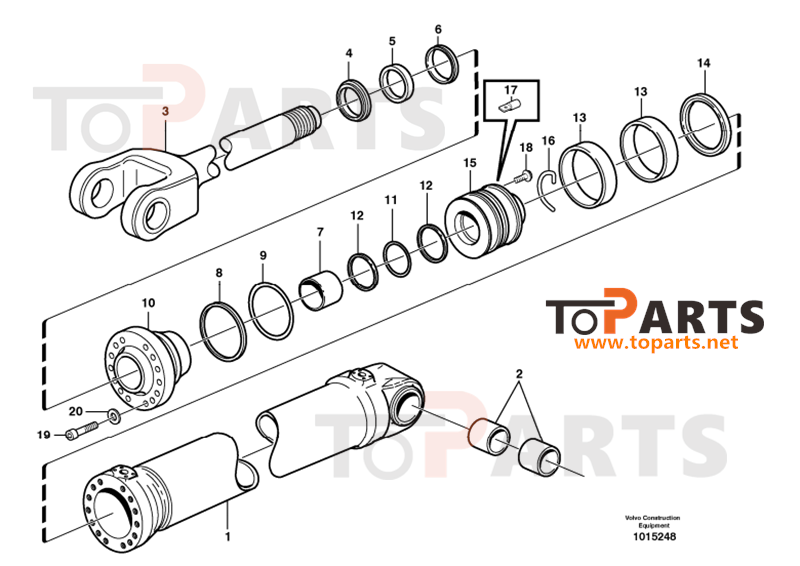

Parts list
|
NO. |
Part Number |
QYT |
Product Name |
|
|
VOE11107579 |
|
Hydraulic cylinder |
|
|
VOE11107865 |
|
Hydraulic cylinder |
|
|
VOE11107867 |
|
Hydraulic cylinder |
|
1 |
|
|
•Cylinder tube |
|
|
VOE11107464 |
|
•Cylinder tube |
|
2 |
VOE11141133 |
|
•Bushing |
|
5 |
VOE11107365 |
1 |
•Piston rod seal |
|
|
VOE11107375 |
|
•Piston rod seal |
|
6 |
VOE11107372 |
1 |
•Piston rod seal |
|
|
VOE11107376 |
|
•Piston rod seal |
|
7 |
VOE11088324 |
2 |
•Bushing |
|
|
VOE11088496 |
|
•Bushing |
|
8 |
|
1 |
•Back-up ring |
|
|
VOE11088320 |
|
•Back-up ring |
|
9 |
VOE962505 |
1 |
•O-ring |
|
|
VOE962509 |
|
•O-ring |
|
10 |
VOE11107093 |
1 |
•Piston rod guide |
|
|
VOE11088414 |
|
•Piston rod guide |
|
11 |
VOE925261 |
1 |
•O-ring |
|
|
VOE925263 |
|
•O-ring |
|
12 |
VOE11088602 |
2 |
•Back-up ring |
|
|
VOE11005097 |
|
•Back-up ring |
|
13 |
VOE11107159 |
2 |
•Guide ring |
|
|
VOE11088793 |
|
•Guide ring |
|
14 |
VOE11107815 |
1 |
•Piston seal |
|
|
VOE11107815 |
|
•Piston seal |
|
|
VOE11107818 |
|
•Piston seal |
|
15 |
VOE11107157 |
1 |
•Piston |
|
|
VOE11107444 |
|
•Piston |
|
16 |
VOE11107158 |
1 |
•Lock brace |
|
17 |
VOE2552116 |
|
•Pin |
|
18 |
VOE11088650 |
|
•Screw |
|
19 |
VOE13966851 |
14 |
•Screw |
|
|
VOE947999 |
|
•Hex. socket screw |
|
20 |
VOE941914 |
14 |
•Spring washer |
|
|
VOE11707905 |
1 |
Sealing kit |
|
|
VOE11712156 |
|
Sealing kit |
Our advantage: original system data to ensure accurate size

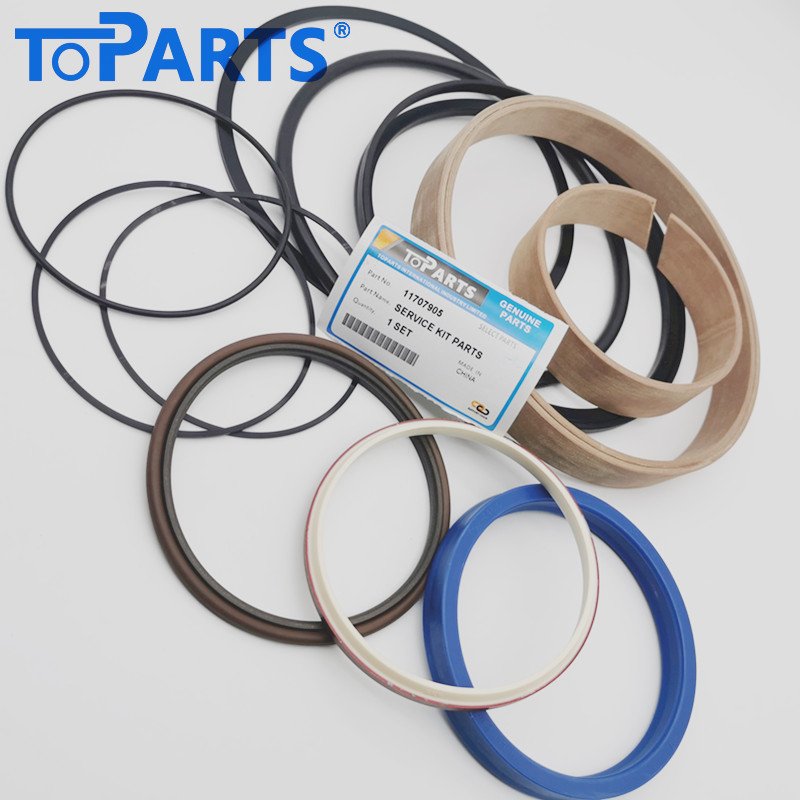

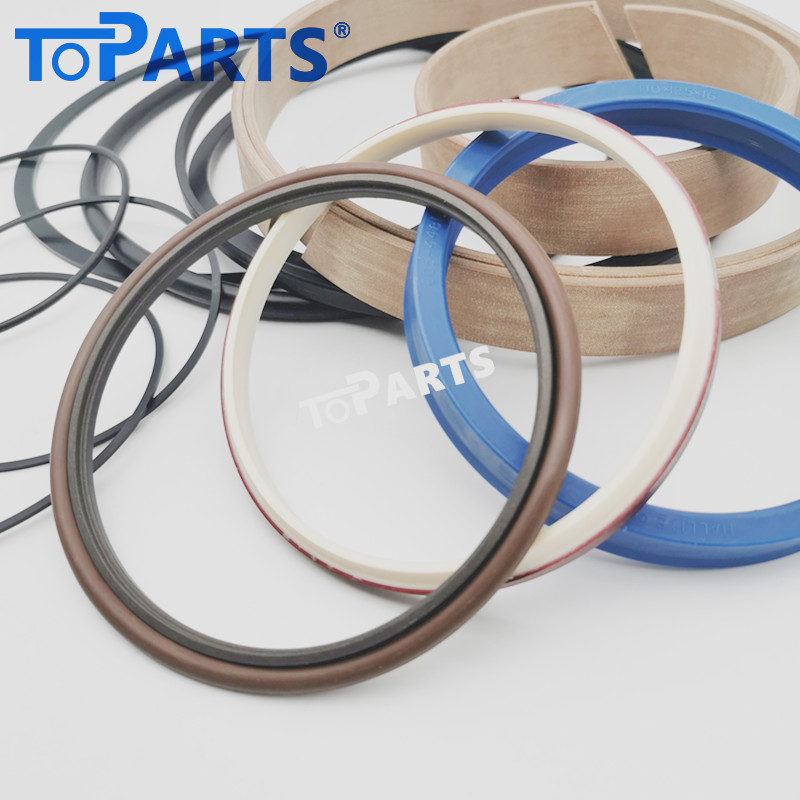

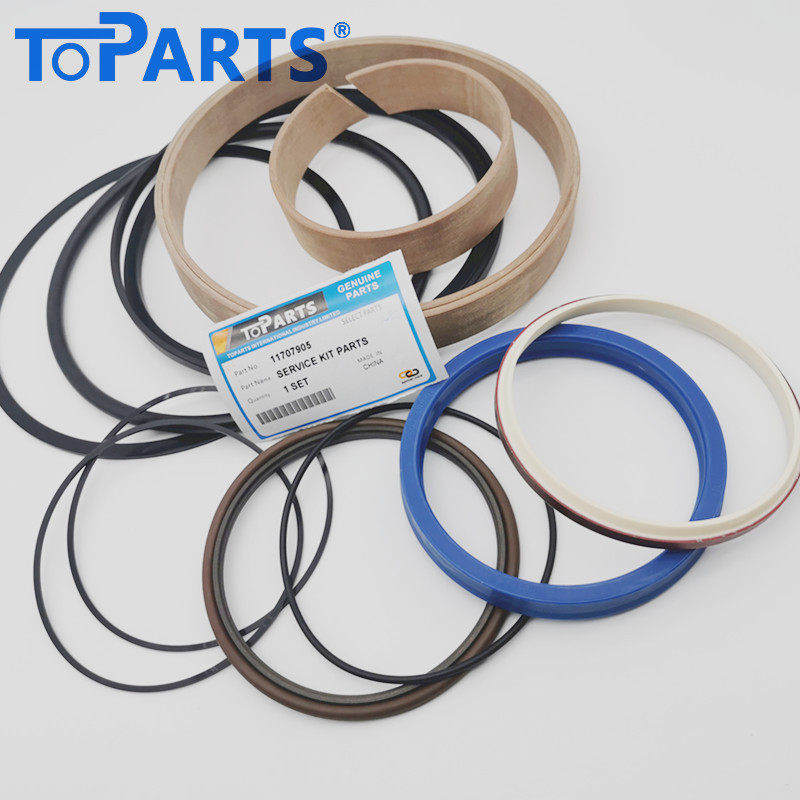

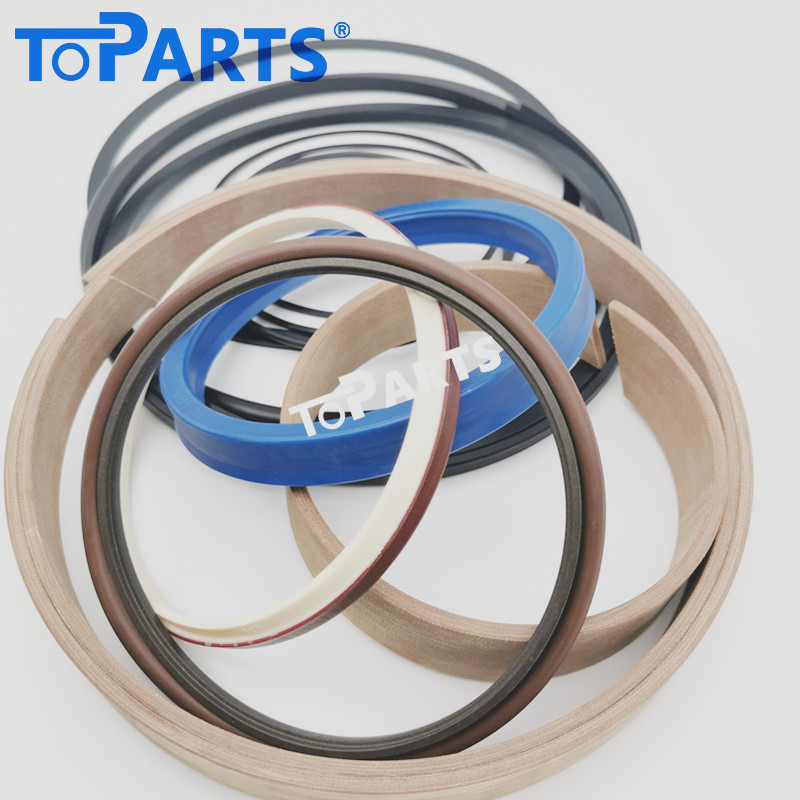

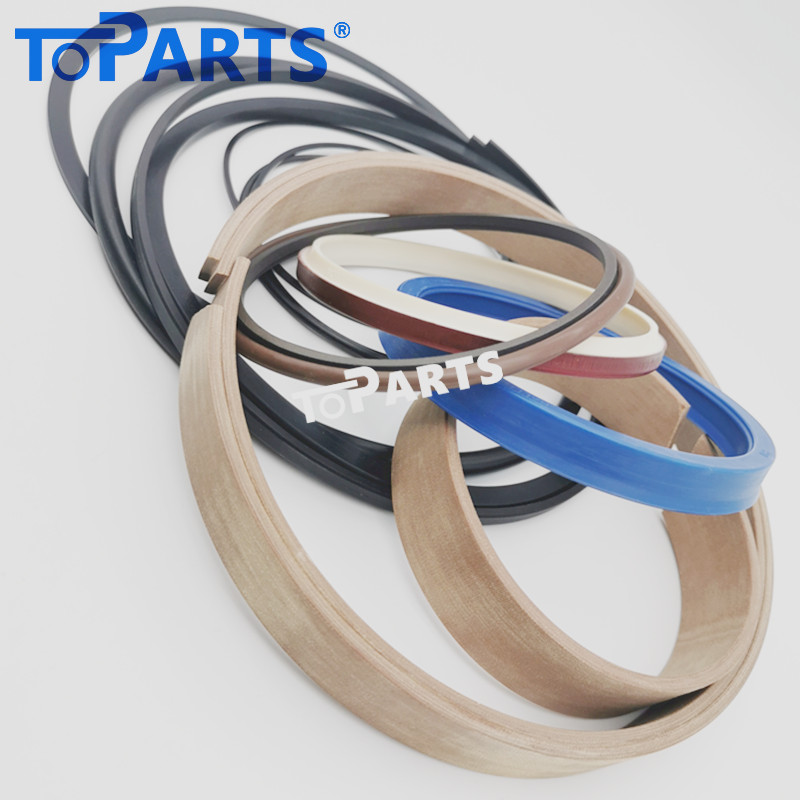

Toparts 11707905 / 11712156 Hydraulic Cylinder Seal Kit for Volvo L330D
Restore the massive lifting power and hydraulic stability of your heaviest equipment with the Toparts 11707905 (11712156) Hydraulic Cylinder Seal Kit. Specifically engineered for the Volvo L330D Wheel Loader, this premium service kit is the professional solution for repairing the Lift Cylinder (Part No. 11107383), ensuring your machine maintains its maximum breakout force and boom stability.
Engineered for Heavy-Duty Mining and Earthmoving
The Volvo L330D is a powerhouse in large-scale mining and quarry operations. Its lift cylinders must support enormous vertical loads while enduring constant high-pressure cycles. Toparts has developed the 11707905 kit using advanced elastomer technology to prevent "boom drift" and internal bypass, ensuring your L330D remains a safe and productive asset in the most demanding environments.
Key Features and Benefits:
Dual Compatibility: Fully compatible with Volvo part numbers 11707902 / 11712156, providing a precision fit for the 11107383 Lift Cylinder.
High-Tensile Materials: Manufactured from premium Polyurethane (PU) and specialized PTFE-reinforced components, offering exceptional resistance to high pressure and abrasive wear.
Thermal Stability: Formulated to perform consistently in extreme temperatures, preventing seal hardening in cold climates or softening under high-heat hydraulic operation.
Superior Contamination Exclusion: Includes a heavy-duty wiper seal designed to scrape away abrasive rock dust and grit, protecting the internal cylinder bore and rod from expensive scoring.
Complete Professional Overhaul: This comprehensive kit includes all essential rod seals, piston seals, buffer seals, back-up rings, and O-rings required for a total hydraulic service.
Maximum Uptime: Toparts' durable seals extend the service life of your cylinders, reducing the frequency of unplanned maintenance and costly downtime.
Product Specifications:
Feature:Details
Part Number:11707905 / 11712156
Compatible Cylinder P/N:11107383 (Lift Cylinder)
Compatible Model:Volvo L330D Wheel Loader
Component Type:Full Hydraulic Sealing Service / Repair Kit
Material Grade:Industrial Strength PU, PTFE, and NBR
Application:Heavy-Duty Material Handling and Mining
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a leading specialist in high-performance sealing solutions for global heavy industry. We know that on a high-production site, reliability equals profitability. Our 11707905 seal kit provides the perfect balance of OEM-standard quality and exceptional aftermarket value, ensuring your Volvo L330D remains powerful, precise, and dependable.
Would you like me to check the availability of the Tilt Cylinder Seal Kit or the Steering Cylinder Repair Kit for your Volvo L330D to complete your maintenance set?
