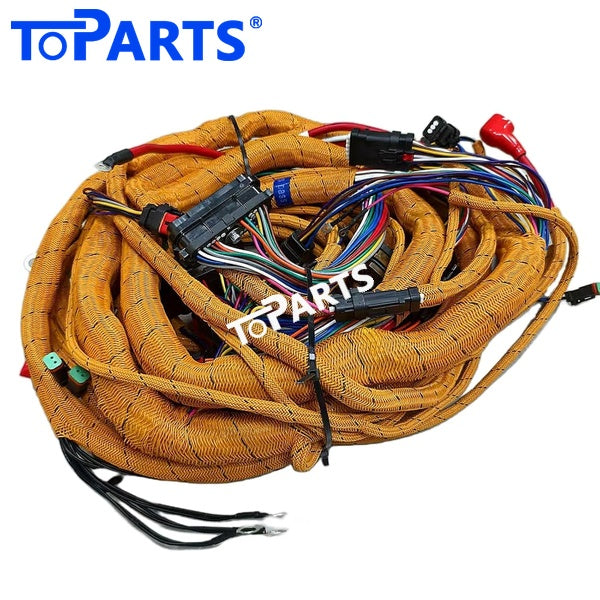

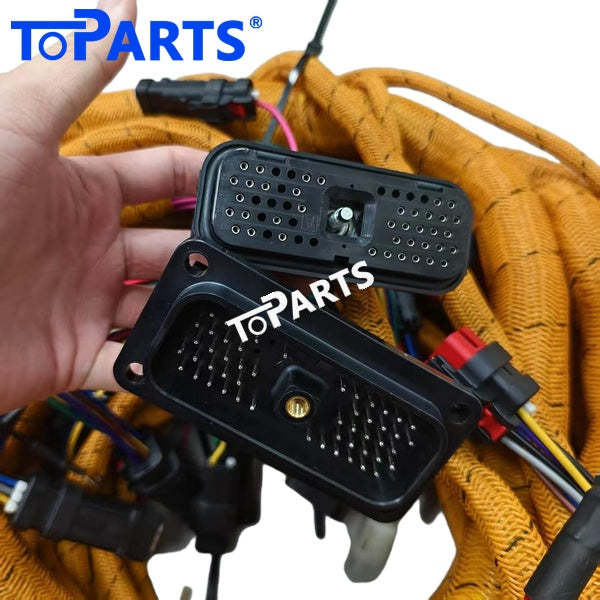

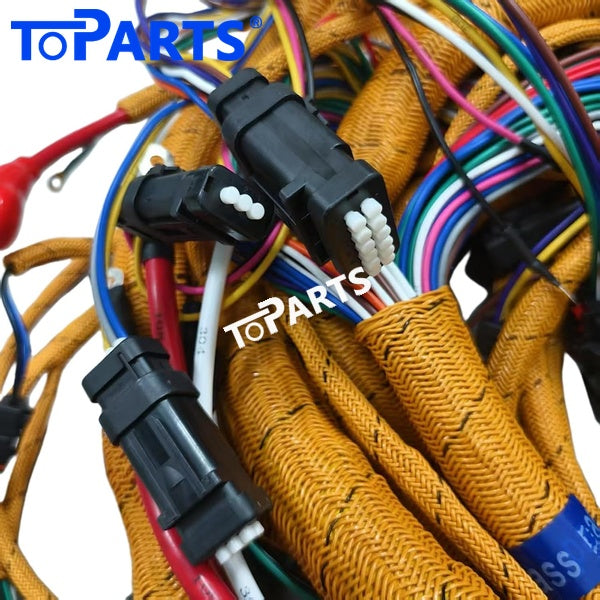

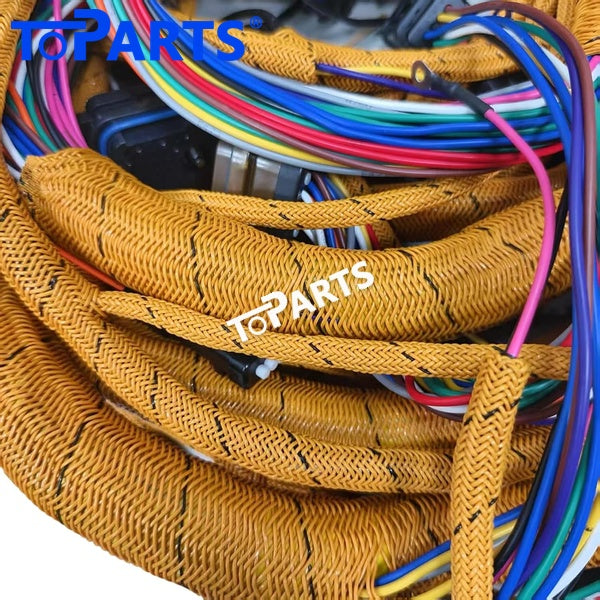

342-2979 3422979 External Wiring Harness for CAT Caterpillar Excavator 324DL 329D 329DL
Part number 342-2979 3422979 is the External Wiring Harness used on Caterpillar 324DL, 329D, 329DL, 329DLN excavators. This aftermarket replacement from TOPARTS is designed to fit in place of the original without cutting, splicing or rerouting.
Its Role in the Machine
Where the engine harness serves the engine, the external or main harness serves the whole machine. It connects the major systems of the excavator, so when it is damaged the symptoms can appear in places that seem unrelated: lights, gauges, solenoids, starting and more.
This is the backbone of the machine's electrical system. The External Wiring Harness runs along the frame and upper structure, distributing power from the batteries and fuse box and carrying signals between the cab, the engine compartment, the hydraulic system and the work lights.
Caterpillar machines rely heavily on electronic engine and machine control, which makes healthy wiring essential for performance and fault-free operation.
What You Get with TOPARTS
TOPARTS harnesses are made to the original layout so that every connector reaches its component without strain. Protective conduit and tape guard the wires against abrasion, heat and oil in the engine bay and around the frame.
Before and During Installation
- Disconnect the battery isolator before starting.
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
Extending Harness Life
Once the new harness is fitted, a quick look during routine services goes a long way. Check for rubbing points, loose clamps and oil contamination, and keep the engine bay and battery area clean so that debris does not build up around the wiring.
When to Replace It
You may notice:
- Work lights, horn or wipers working only some of the time
- Several unrelated circuits failing at once
- Blown fuses that keep recurring with no obvious cause
- Starting problems traced to wiring rather than the battery or starter
- Rodent damage, crushed sections or wires worn through where the harness rubs the frame
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Frequently Asked Questions
Is this harness plug-and-play?
Yes. It is built to the original layout with matching connectors, so it installs in place of the original without cutting or splicing.
How do I know it will fit my machine?
Match the part number on your old harness, or send us your machine model and serial number and we will confirm before you order.
How long does shipping take?
Orders are shipped by express courier such as DHL, FedEx, UPS or TNT, and you will receive a tracking number by email as soon as your parcel leaves our warehouse.
Part Information
- Part Name: External Wiring Harness
- Part Number: 342-2979, 3422979
- Condition: Aftermarket new
- Product Weight: 17 kg / 37.48 lbs
- Brand: TOPARTS
- Feature: Matches original routing and length; durable, heat-resistant insulation
Applicable Models
Caterpillar Excavator 324DL 329D 329DL 329DLN
Shipping and Payment
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
