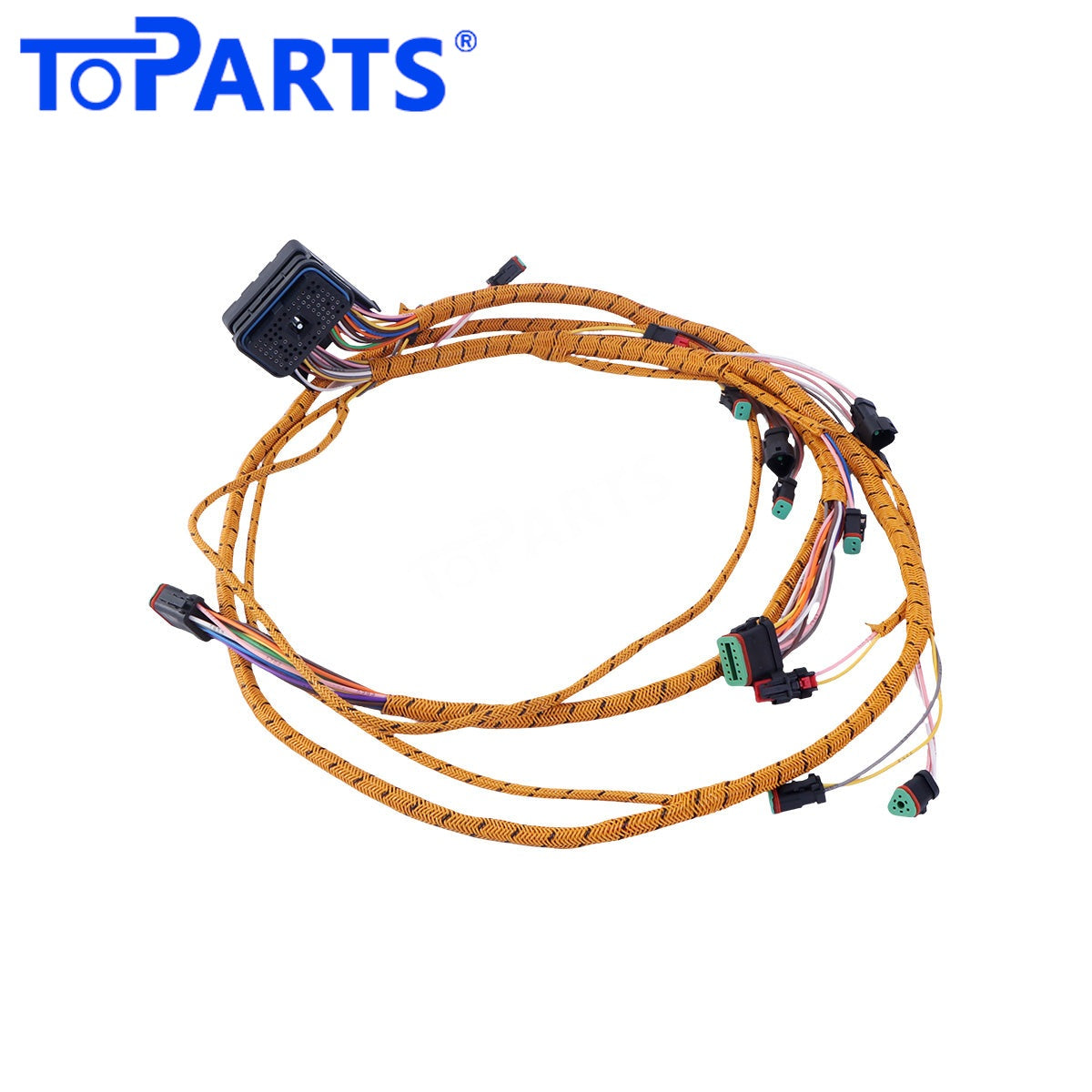

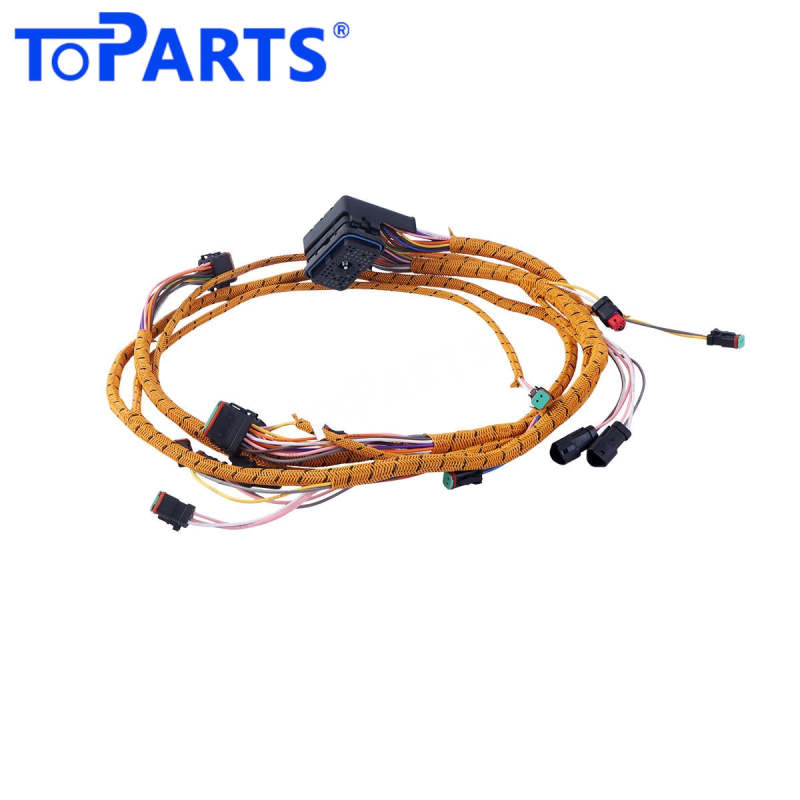

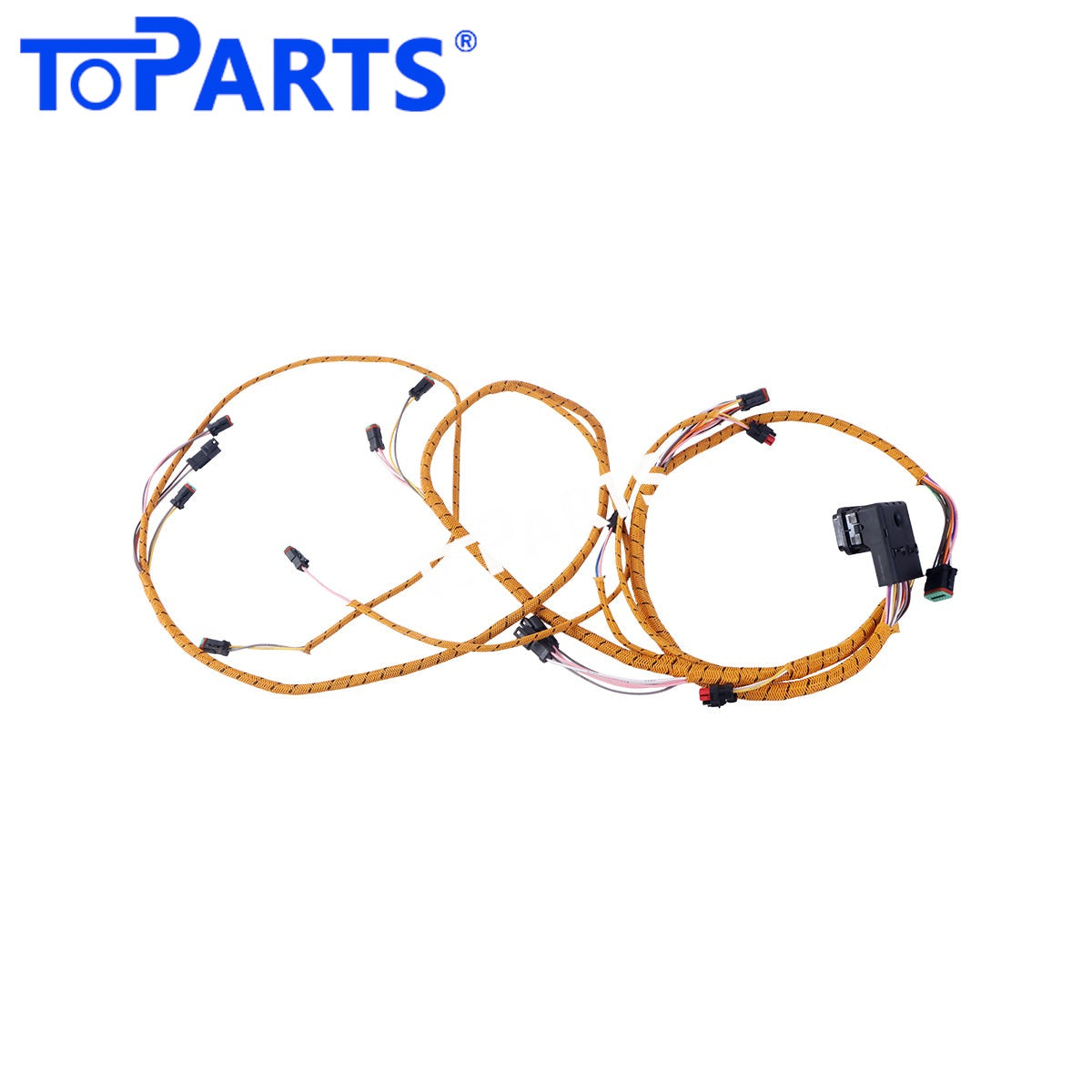

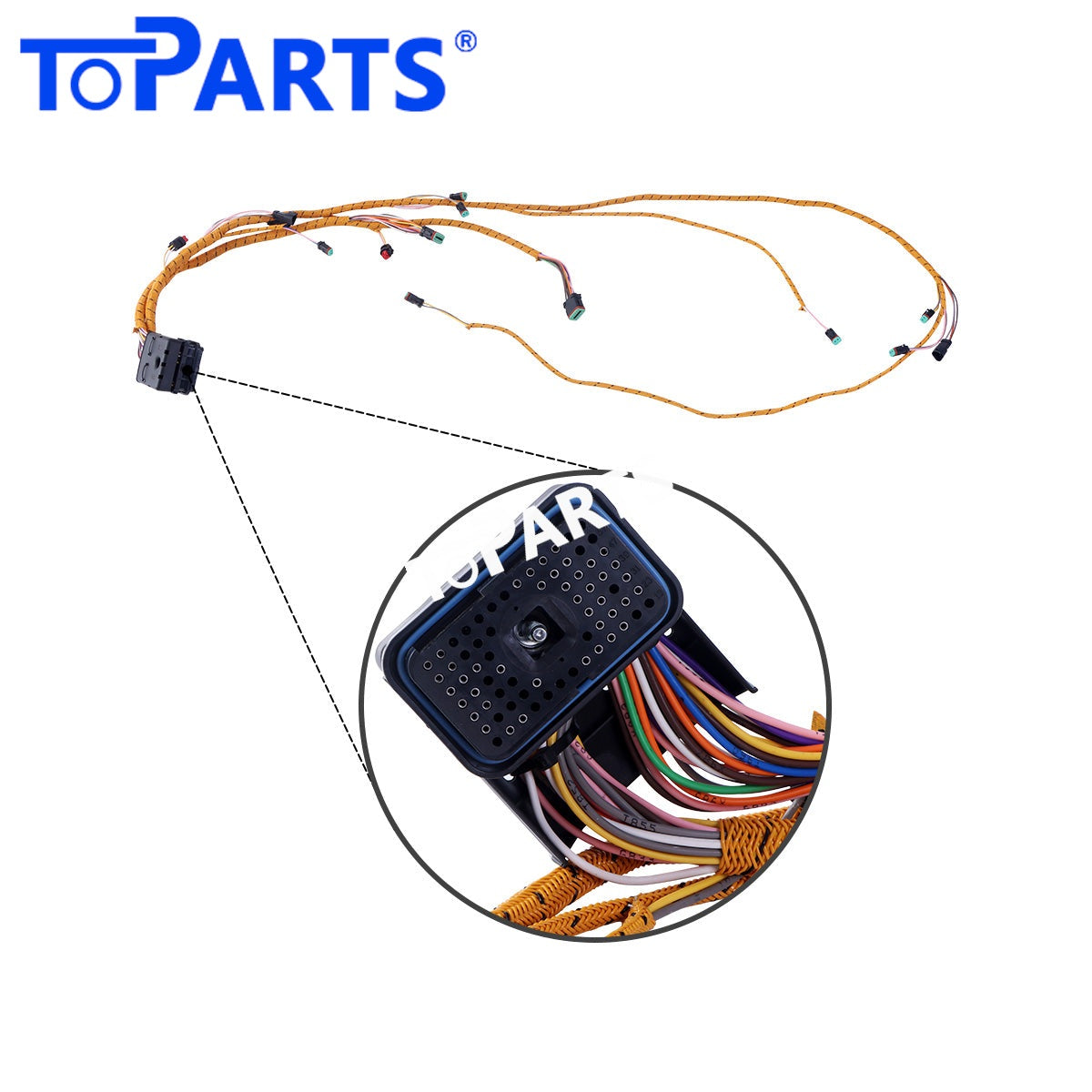

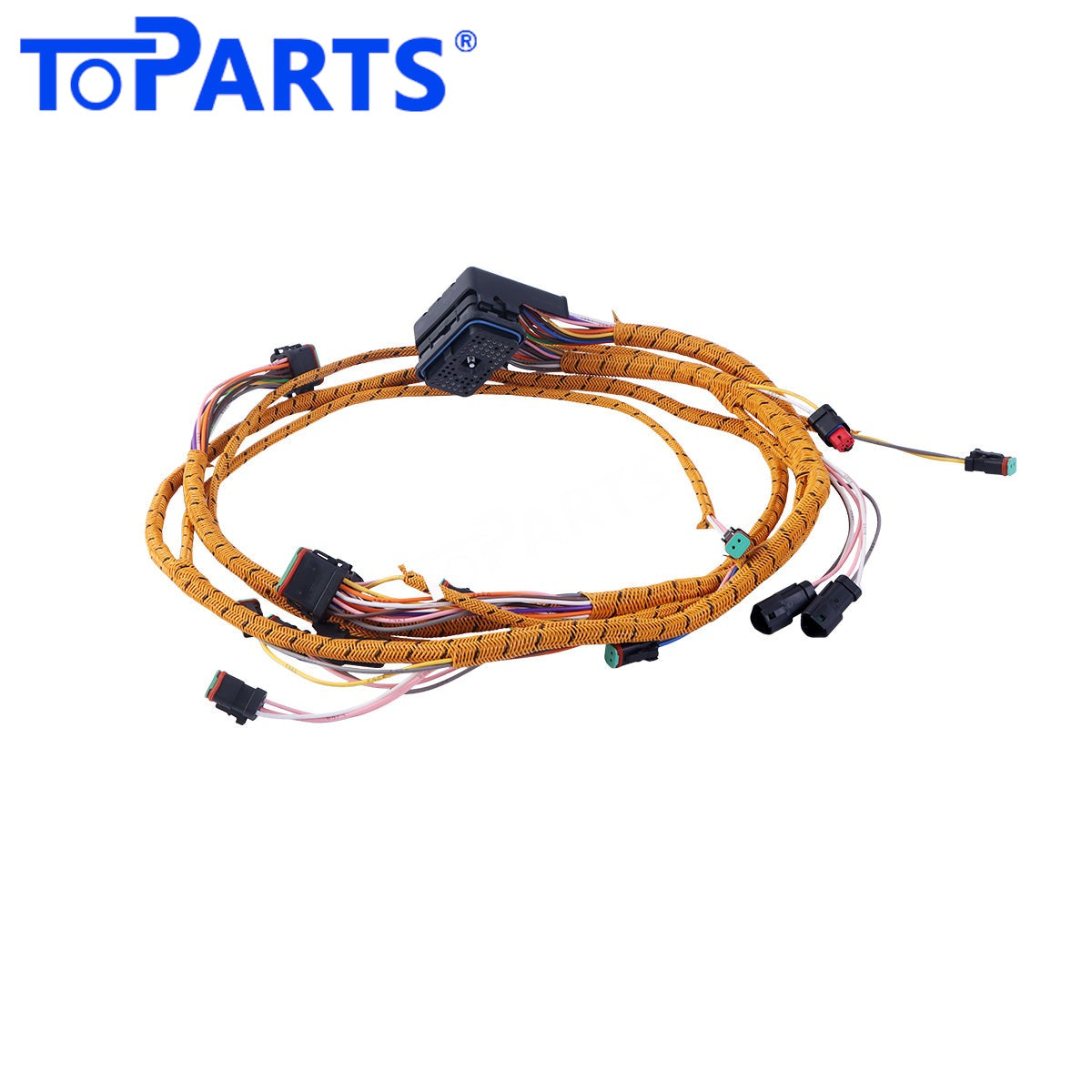

2413150 241-3150 Engine Wiring Harness for Caterpillar CAT C15 Engine
When the original harness on your Caterpillar C15 has worn out, the 2413150 241-3150 Engine Wiring Harness is a straightforward way to get the machine back to full function. It is made to the same layout as the original, with matching connectors at every branch.
It is used with the C15 engine and is matched to that engine's sensor and connector layout.
Specifications
- Part Name: Engine Wiring Harness
- Part Number: 2413150, 241-3150
- Engine: C15
- Condition: Aftermarket new
- Product Weight: 1.5 kg / 3.31 lbs
- Brand: TOPARTS
- Feature: Quality checked before shipping; built for heavy-duty use
Fits the Following Machines
Caterpillar CAT C15 Engine
What This Harness Does
Every start, every throttle change and every load the engine takes on is managed through this harness. It routes power and data between the ECM and the engine-mounted components, so a single damaged wire here can show up as a problem anywhere in the engine's behaviour.
Think of this harness as the communication line of the engine. Speed sensors, temperature senders, pressure switches and fuel system components all report back through it, and the controller sends its commands out along the same path.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
Extending Harness Life
Avoid aiming a pressure washer directly at connectors and the ECM. Water forced past the seals is a common cause of corrosion and intermittent faults. A light spray and a dry cloth are kinder to the electrical system.
Installation Guide
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Confirming Fitment
Before ordering, compare the part number printed on the label of your original harness with 2413150 241-3150. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
Signs Your Harness Needs Replacing
Watch for these symptoms:
- Engine cranks but will not start, or starts only after several attempts
- Engine stalling, misfiring or running roughly at idle
- Problems that come and go when the engine heats up or when the machine vibrates
- Visible heat damage, cracked insulation or chafed wires near the engine block
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
What You Get with TOPARTS
Each harness is produced under strict quality control, with wire gauges, colours and connector types matched to the original specification. Terminals are crimped for secure contact, and the bundle is protected with sleeving where the original used it.
Order & Delivery
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
