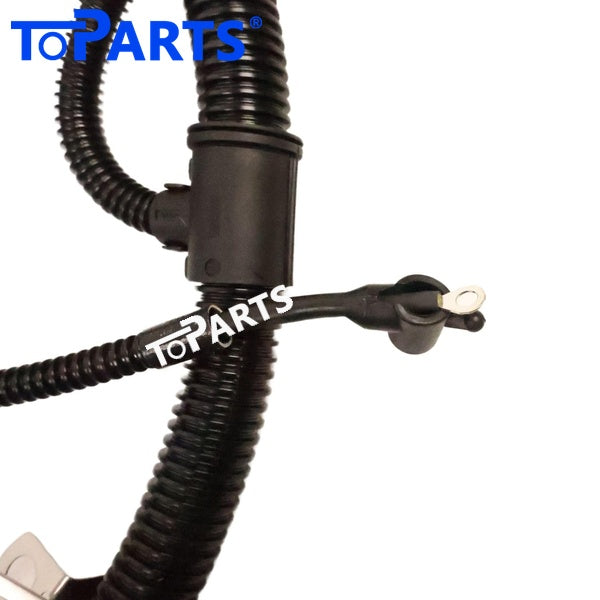

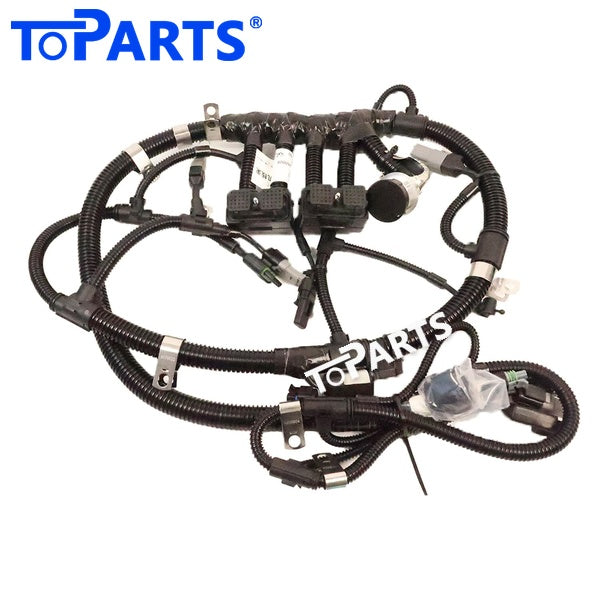

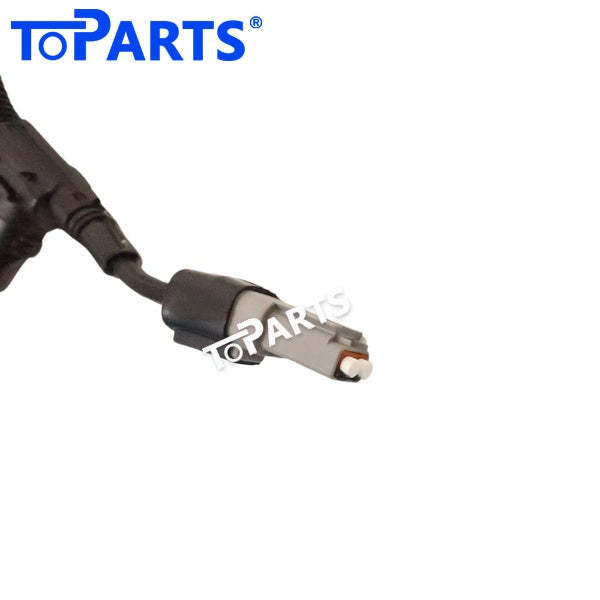

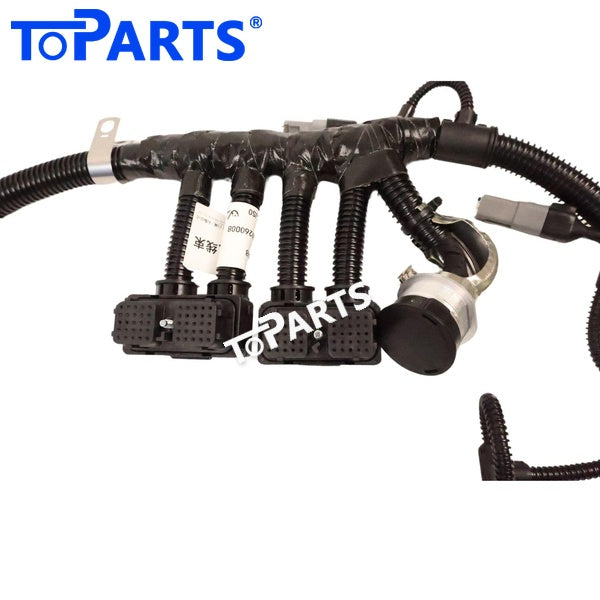

4004501 2864488X Engine Wiring Harness for Cummins Engine QSM11
Looking for part 4004501 2864488X? This Engine Wiring Harness is made for Cummins QSM11 and reproduces the original harness design, from wire lengths and branch points to the connector types on each end.
Designed around the QSM11 engine configuration, it connects to the same points as the factory harness.
Specs at a Glance
- Part Name: Engine Wiring Harness
- Part Number: 4004501, 2864488X
- Engine: QSM11
- Condition: Aftermarket new
- Product Weight: 1 kg / 2.20 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Original connector layout; plug-and-play installation
Fits the Following Machines
Cummins Engine QSM11
Its Role in the Machine
Think of this harness as the communication line of the engine. Speed sensors, temperature senders, pressure switches and fuel system components all report back through it, and the controller sends its commands out along the same path.
The Engine Wiring Harness is the nerve center of the engine bay. It links the engine control module to the sensors, injectors and actuators that keep combustion on target, carrying every signal the ECM needs to read speed, temperature and pressure and respond in milliseconds.
Cummins engines power a wide range of construction and industrial equipment, and their electronic control systems depend on sound engine wiring.
Signs Your Harness Needs Replacing
You may notice:
- Problems that come and go when the engine heats up or when the machine vibrates
- Engine cranks but will not start, or starts only after several attempts
- Gauges for engine temperature or oil pressure reading erratically
- Fault codes for sensors, injectors or the ECM appearing on the monitor
- Sudden loss of power or the engine entering a derated mode
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Keeping the New Harness in Good Shape
Rodents are a common cause of harness damage on machines that sit for long periods. Keeping the cab and engine compartment clean of food waste, and using deterrents where machines are parked for a while, helps protect the new wiring.
Installation Guide
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
How to Verify Compatibility
Model names are not always enough to confirm fitment, because manufacturers sometimes change harness designs within a model's production run. Check the part number on your existing harness, or send us your machine model and serial number, and we will check it for you.
The Cost of Waiting
An engine sitting idle waiting for parts costs money every hour. Having the correct harness on hand means the repair becomes a scheduled job instead of an emergency, and the machine is back at work as soon as installation is finished.
