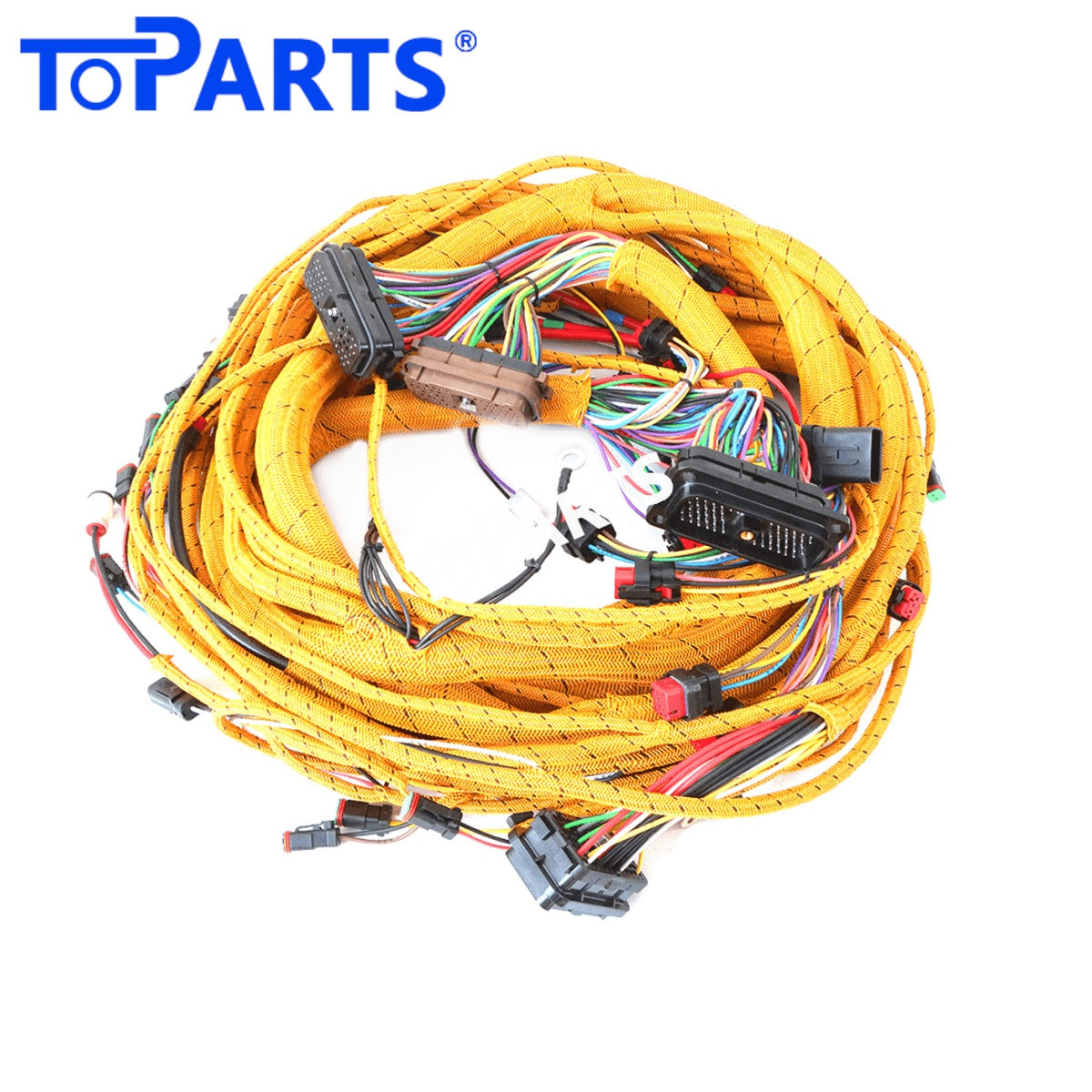

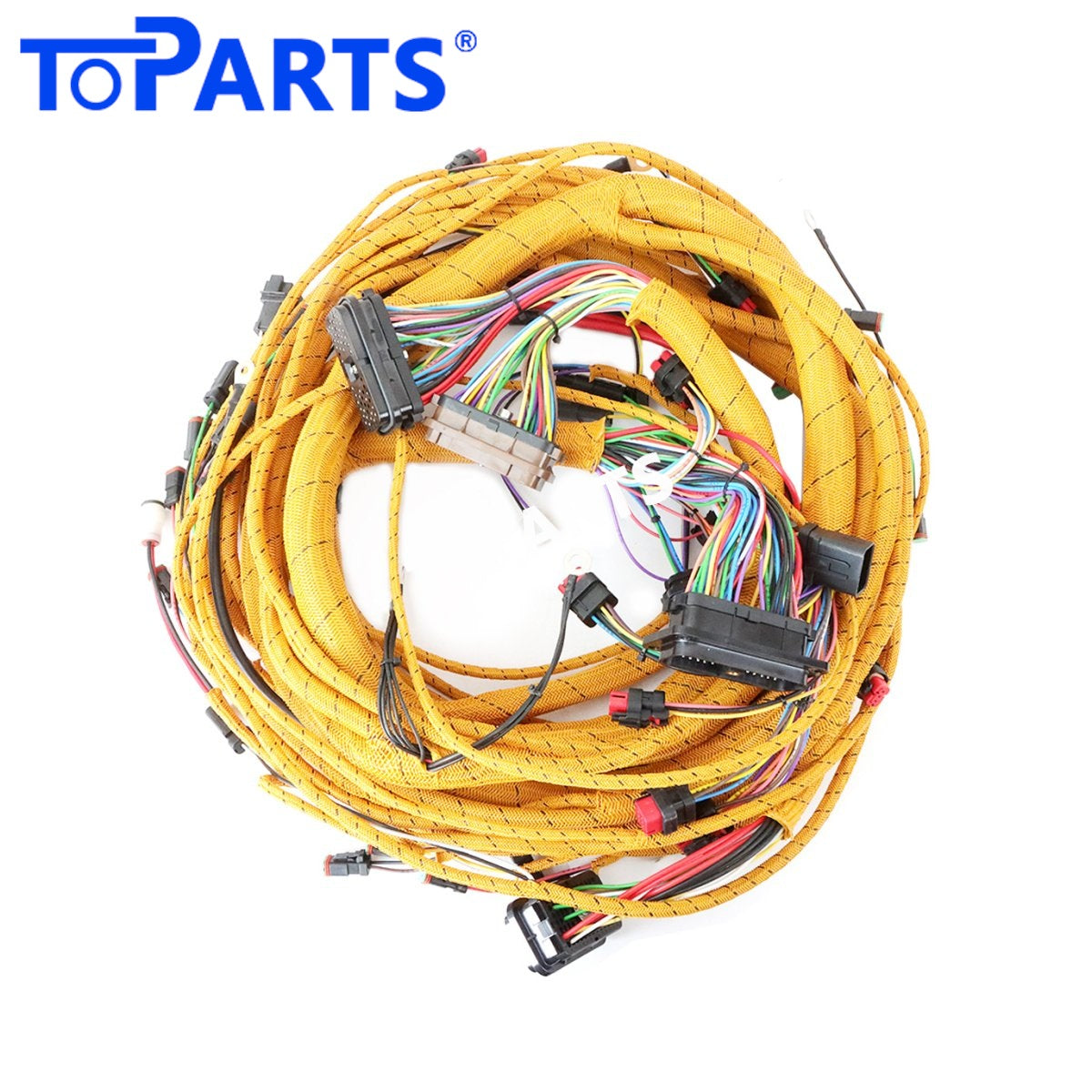

433-3986 4333986 Chassis Wiring Harness for Caterpillar CAT Excavator 336D2 E336D2
Looking for part 433-3986 4333986? This Chassis Wiring Harness is made for Caterpillar 336D2, E336D2 excavators and reproduces the original harness design, from wire lengths and branch points to the connector types on each end.
Engine reference: C9. Please confirm your engine model along with the machine model when checking fitment.
Its Role in the Machine
Where the engine harness serves the engine, the external or main harness serves the whole machine. It connects the major systems of the excavator, so when it is damaged the symptoms can appear in places that seem unrelated: lights, gauges, solenoids, starting and more.
Because it runs through the most exposed areas of the machine, the main harness takes more abuse than almost any other electrical part. Swinging, vibration, dust, washdowns and rodents all take their toll, which is why it is one of the most commonly replaced harnesses on older machines.
Caterpillar machines rely heavily on electronic engine and machine control, which makes healthy wiring essential for performance and fault-free operation.
How to Verify Compatibility

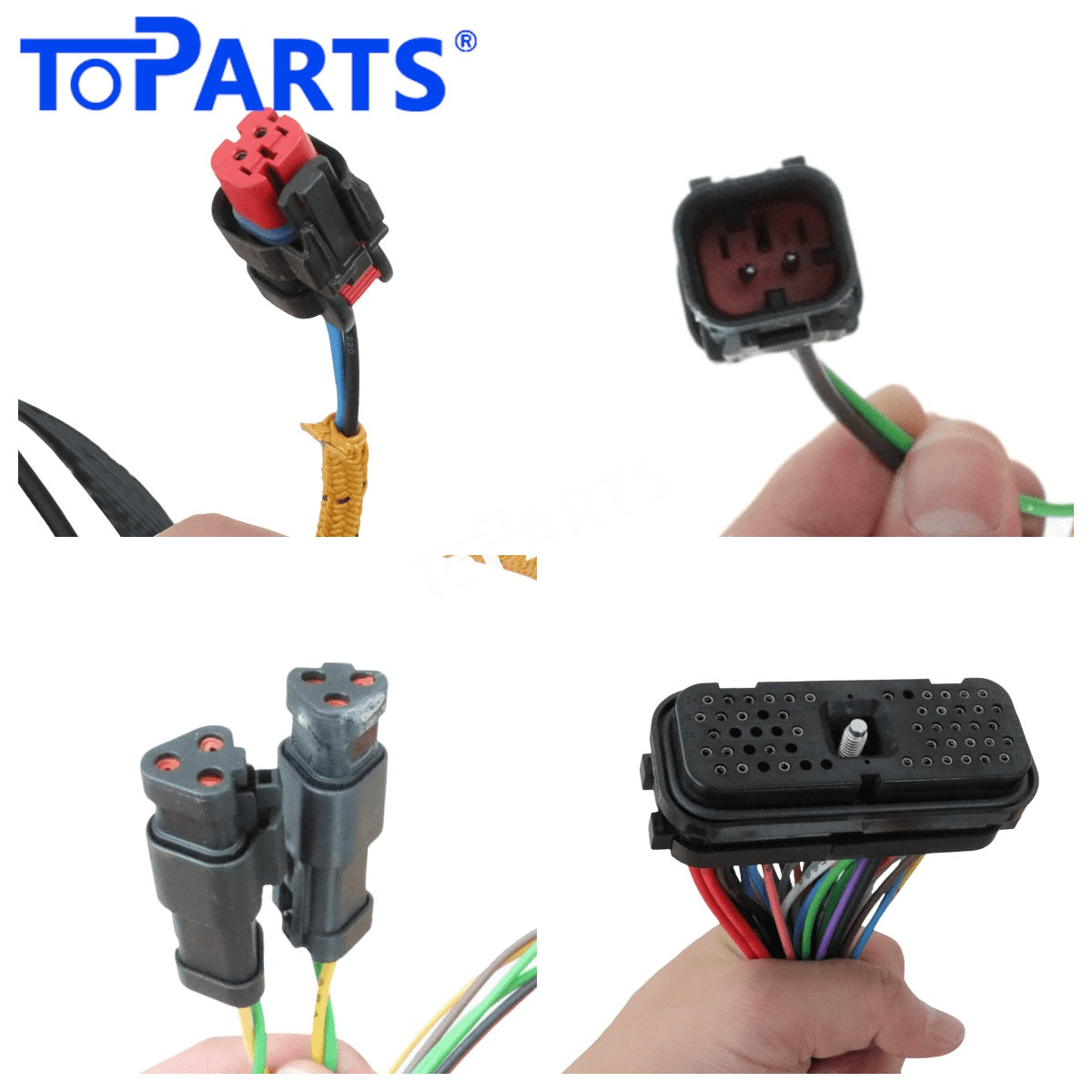

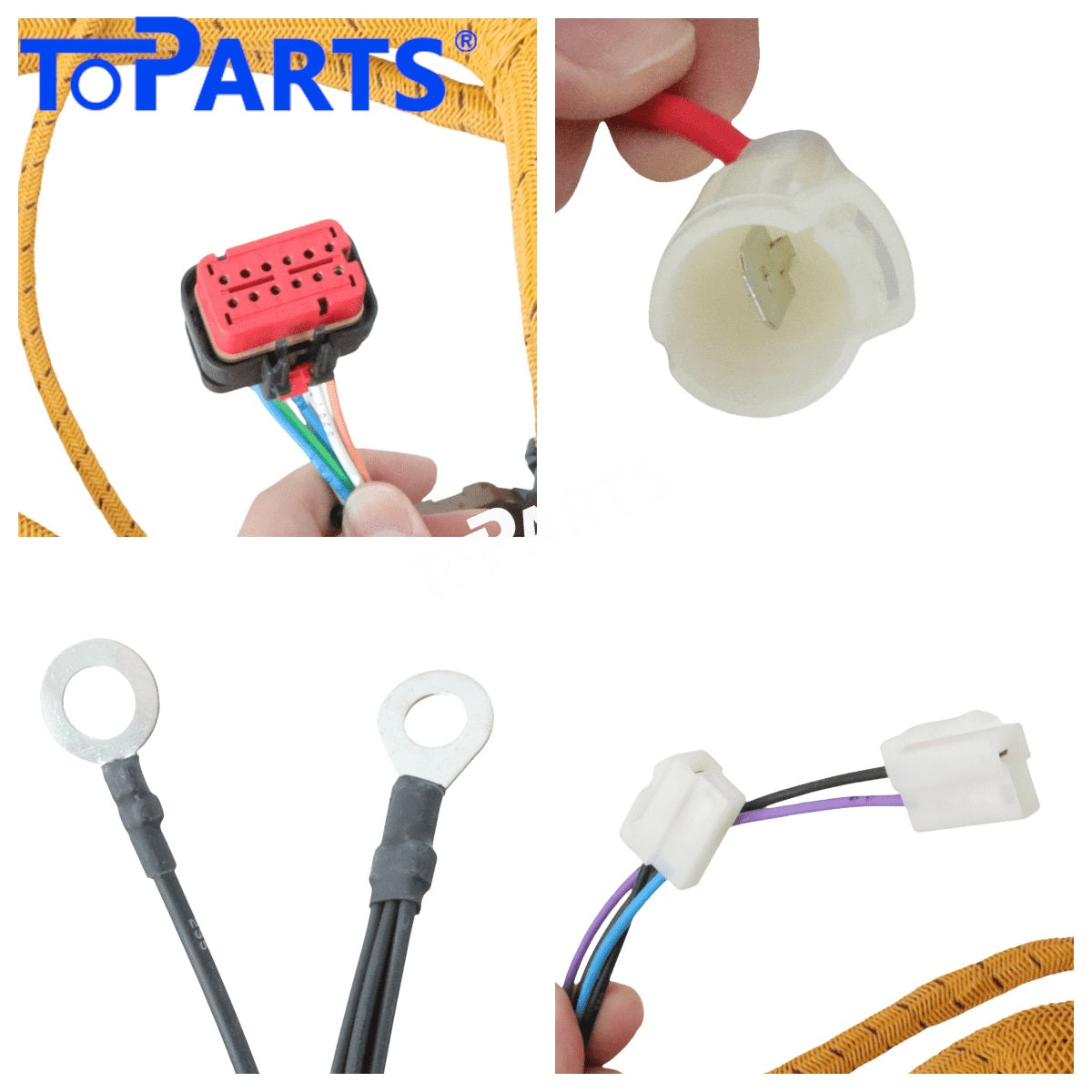

Before ordering, compare the part number printed on the label of your original harness with 433-3986 4333986. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
Repair vs. Replacement
Harness repairs are hard to do well in the field. Moisture gets into joints, tape loosens with heat, and intermittent faults come back. Replacing the harness gives you factory-style connections throughout and makes future troubleshooting far simpler.
Installation Tips
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
Made to Last on the Job Site
We check connector fit, wire continuity and overall layout before shipping, so the harness you receive is ready to install. The materials are chosen for the temperature range, vibration and contamination found on construction equipment.
Signs Your Harness Needs Replacing
Common warning signs are:
- Hydraulic functions slowing down or stopping because solenoids lose signal
- Starting problems traced to wiring rather than the battery or starter
- Blown fuses that keep recurring with no obvious cause
- Work lights, horn or wipers working only some of the time
- Rodent damage, crushed sections or wires worn through where the harness rubs the frame
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
Specifications
- Part Name: Chassis Wiring Harness
- Part Number: 433-3986, 4333986
- Engine: C9
- Condition: Aftermarket new
- Product Weight: 15 kg / 33.07 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Quality checked before shipping; built for heavy-duty use
Application
Caterpillar CAT Excavator 336D2 E336D2 Engine C9
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
