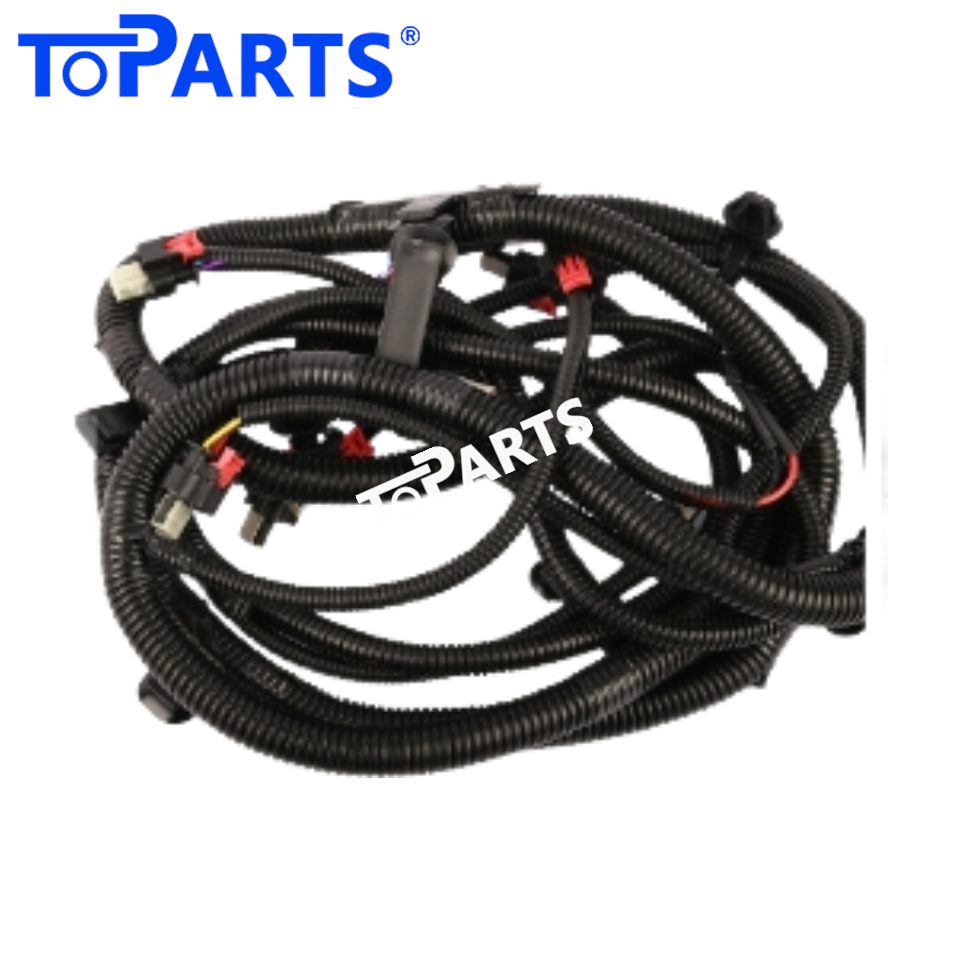

0001661 External Wiring Harness for Hitachi EX300-3 Excavator

Part number 0001661 is the External Wiring Harness used on Hitachi EX300-3 excavator. This aftermarket replacement from TOPARTS is designed to fit in place of the original without cutting, splicing or rerouting.

Part Information

• Part Name: External Wiring Harness
• Part Number: 0001661
• Condition: Aftermarket new
• Product Weight: 15 kg / 33.07 lbs
• Brand: TOPARTS
• Warranty: 6 months
• Feature: Strict quality control standards; stable performance and high reliability

Application

Hitachi EX300-3 Excavator

Function Overview

This is the backbone of the machine's electrical system. The External Wiring Harness runs along the frame and upper structure, distributing power from the batteries and fuse box and carrying signals between the cab, the engine compartment, the hydraulic system and the work lights.

Laid out around the frame and through the house of the excavator, this harness is the long-distance carrier of the electrical system. It ties together the cab controls, controllers, pump and valve solenoids, sensors and lighting into one connected network.

Hitachi excavators are popular on the used market, and harness replacement is one of the most effective ways to restore an older Hitachi to dependable everyday use.

Reducing Downtime

An excavator sitting idle waiting for parts costs money every hour. Having the correct harness on hand means the repair becomes a scheduled job instead of an emergency, and the machine is back at work as soon as installation is finished.

Maintenance Advice

Rodents are a common cause of harness damage on machines that sit for long periods. Keeping the cab and engine compartment clean of food waste, and using deterrents where machines are parked for a while, helps protect the new wiring.

Make Sure It Fits

Before ordering, compare the part number printed on the label of your original harness with 0001661. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.

When to Replace It

Common warning signs are:

• Work lights, horn or wipers working only some of the time
• Hydraulic functions slowing down or stopping because solenoids lose signal
• Monitor warnings that disappear when the machine is stopped
• Several unrelated circuits failing at once

If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.

Installation Guide

1. Disconnect the battery isolator before starting.
2. Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
3. Check every ground strap and clean its contact surface to bare metal.
4. Add protective sleeving wherever the old harness showed signs of rubbing.
5. Test lights, horn, solenoids and the monitor before refitting covers.

Shipping and Payment

• Payment Method: PayPal, Stripe, Credit card, Visa, etc.
• Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
• Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.

Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
